***Special Order on PPA100A and PPA200A. Contact AIMS for lead time.***

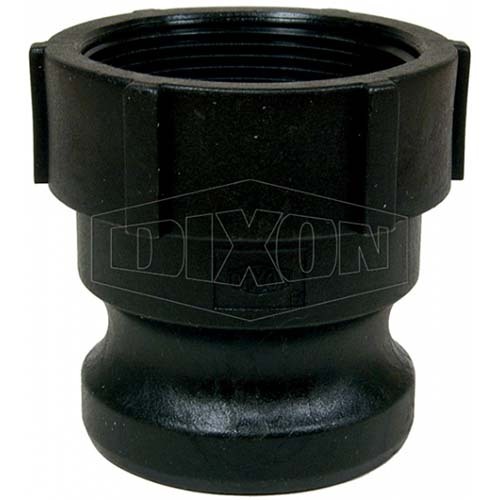

Dixon Polypropylene Cam & Groove Type A Adapter x Female BSP
Use
- Designed for use with liquids
Construction
- Polypropylene 30% glass filled
How it works
- The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint.
Note
- The adaptor portion of the 15mm size uses the 20mm standard body size.
Safety notes
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
- Pressure rating is based on the seal of the mating part
- Polypropylene cam & groove should not be mixed with aluminum fittings.
About Dixon
Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, founded in 1916.
- Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
- Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.
