Description

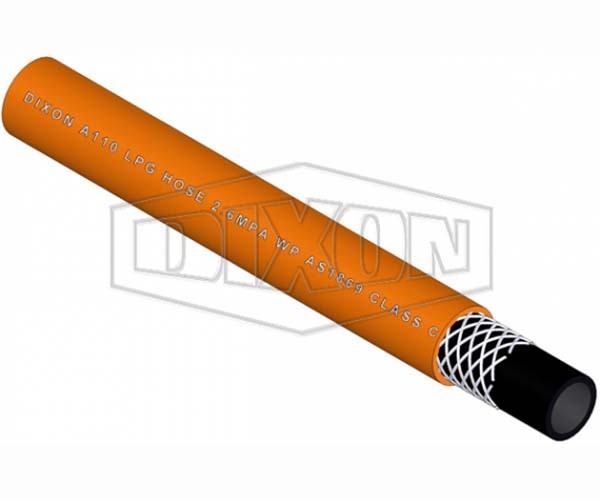

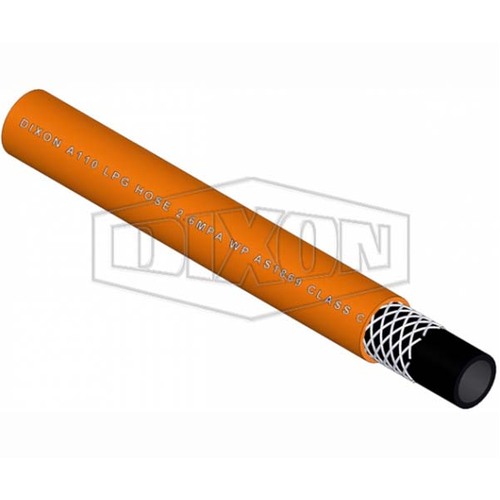

Dixon Rubber Single LPG Hose

Applications

  • For conveying LPG in household and industrial applications. Used for gas cutting application.

Construction

  • Tube: NBR
  • Reinforcing: Polyester
  • Cover: PVC / NBR Orange

Specifications

  • AS/NZS1869 Class C

Safety Note

  • Bend radius figure is calculated as theoretical.

Available Lengths

  • Cut Length: 5 m
  • Coil Lenght: 20 m
  • Reel Lenght: 100 m and 200 m (2 x 100m reels)

***Note: For the 200 m, there are 2 pieces of 100m tied together by string to allow spooling onto the reel. Continuous length of 200m is not available.***

Specifications

  • AIMS SKU A0068307R100
  • Brand Dixon
  • Model Number A11005100
  • Hose Length 100 m
  • Application Gas
  • Burst Pressure 1500 psi
  • Color Orange
  • Working Pressure (psi) 375
  • Temperature Range -20°C to 75°C
  • Working Pressure (mpa) 2.6
  • Weight kg/m 0.18
  • Hose ID (mm) 5
  • Bend Radius (mm) 60
  • Hose Outside Diameter (mm) 13
  • Type Single LPG Hose
  • Material NBR/PVC NBR
SKU: A0068307R100

Dixon 5mm x 100m Rubber Single LPG Hose Orange A11005100

Dixon Rubber Single LPG Hose Orange

$533.03
