Dixon 25mm x 20m Rubber General Purpose Black Hose A101025020

Description

Dixon Rubber General Purpose Black Hose

Applications

General Purpose Black is made to handle many special purpose air and water applications. This quality versatile hose meets the requirements for the industrial, construction and agricultural markets where oil is not considered a significant factor.

Features

UV stabilised

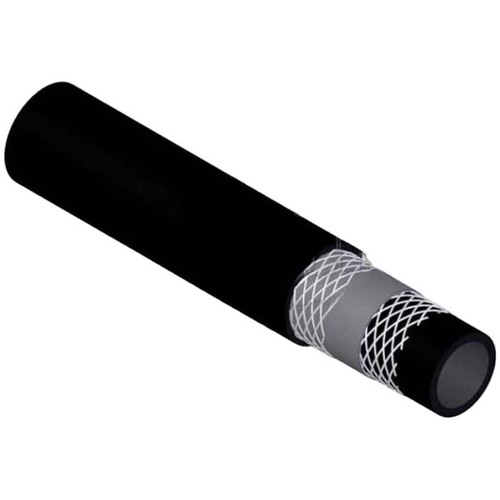

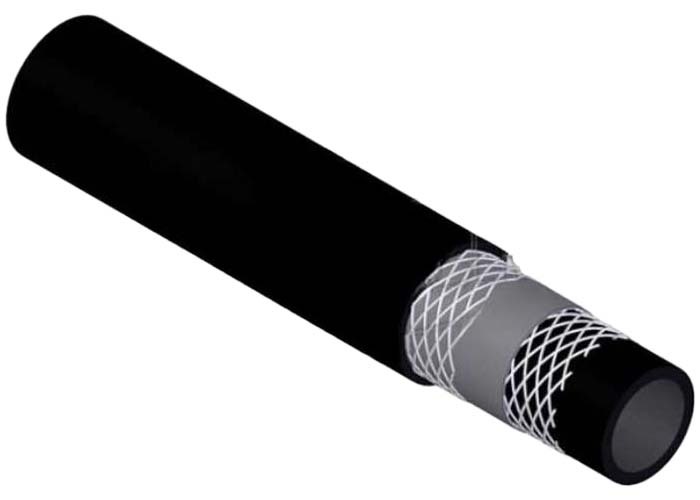

Construction

Tube: NR / SBR blend
Cover: EPDM / SBR blend
Reinforcement: 2 and 4 spiral polyester yarn

Available Lengths

Cut Lenght: 10 m
Coil Length: 20 m
Reel Length: 100 m and 200 m (2 x 100m per reel)

***Note: For the 200 m, there are 2 pieces of 100m tied together by string to allow spooling onto the reel. Continuous length of 200m is not available.***

Specifications

AIMS SKU A0068273C20

Brand Dixon

Model Number A101025020

Hose Length 20 m

Application Air & Water

Burst Pressure 696 psi

Color Black

Working Pressure (psi) 200

Temperature Range -20°C to 90°C

Working Pressure (mpa) 1.4

Weight kg/m 0.99

Hose ID (mm) 25

Bend Radius (mm) 150

Hose Outside Diameter (mm) 36.5

Type General Purpose Black Hose
Material EPDM
