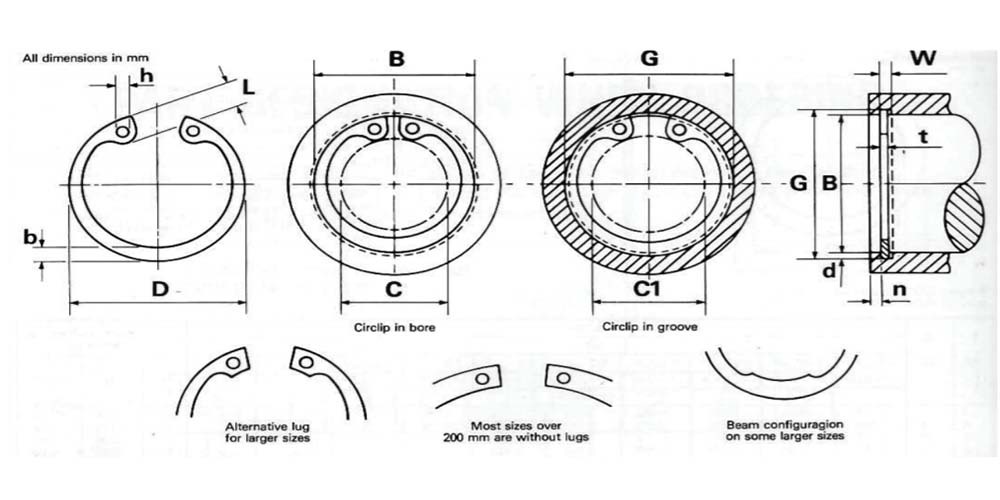

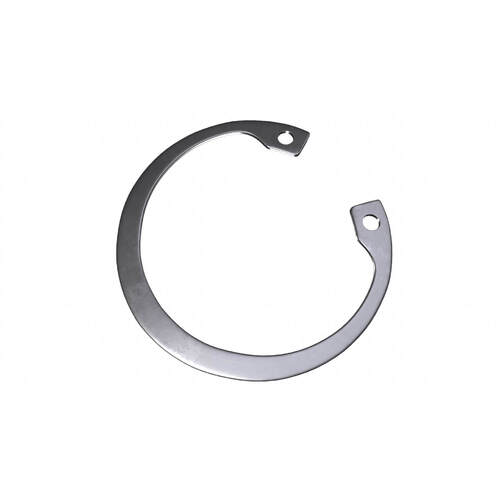

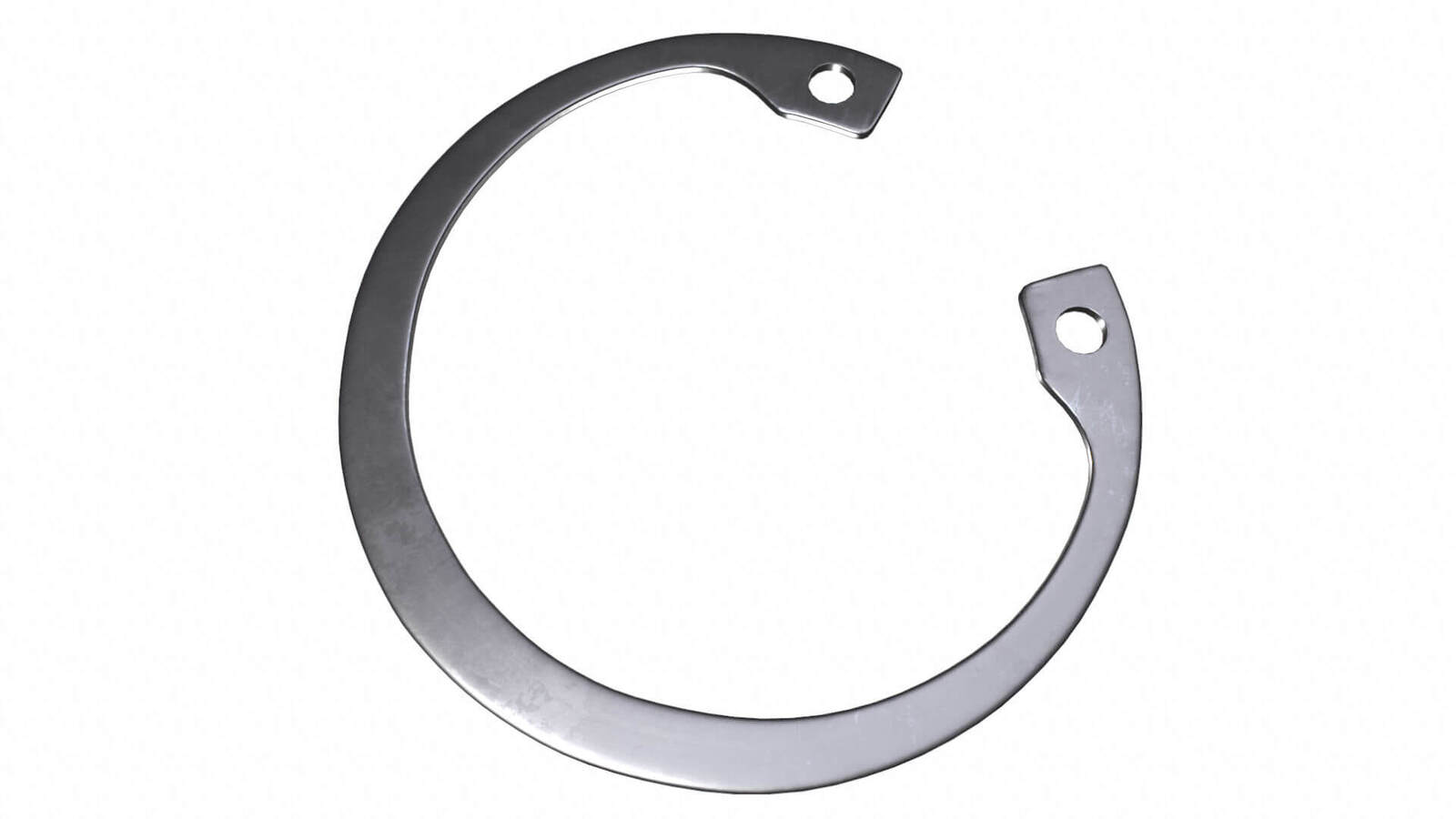

Specifications

AIMS SKU A0100532
Bore Diameter (D) mm 45
Groove Diameter (G) mm 47.5
Tolerance (G) (+)0.25, (-)0.00
Groove Width (W) mm 1.85
Tolerance (W) (+)0.14, (-)0.00
Shoulder Length (n) mm 0.8
Radial Depth Of Groove (d ~) 1.25
Thickness (t) mm 1.75
Tolerance (t) (+)0.00, (-)0.06
Unstressed Diameter (D) mm 48.5
Tolerance (D) (+)0.90, (-)0.39
Circlip In Bore ( C ) mm 32
Circlip In Groove (C1) mm 35.1
Lug Max (Lmax) mm 6.5
Beam Dimension (b) mm 4.3
Lug Hole (h min) mm 2.5
• Type Internal Circlips
• Item Type (Internal/External)
