Specifications

AIMS SKU A0100365

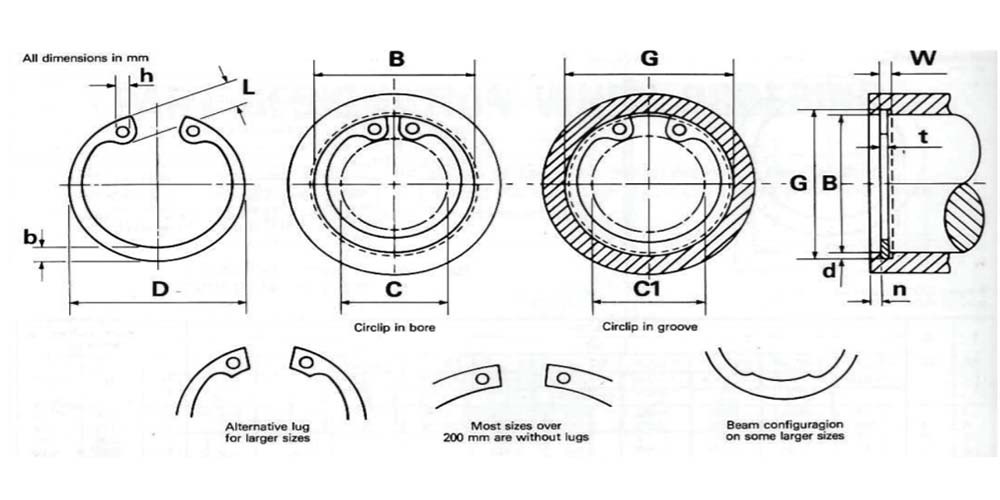

Bore Diameter (D) mm 90
Groove Diameter (G) mm 93.5
Tolerance (G) (+)0.35, (-) 0.00
Groove Width (W) mm 3.15
Tolerance (W) (+)0.18, (-)0.00
Shoulder Length (n) mm 5.3
Radial Depth Of Groove (d ~) 1.75
Thickness (t) mm 3
Tolerance (t) (+)0.00, (-)0.08
Unstressed Diameter (D) mm 95.5
Tolerance (D) (+)1.30, (-)0.54
Circlip In Bore ( C ) mm 71.9
Circlip In Groove (C1) mm 76.3
Lug Max (Lmax) mm 8.6
Beam Dimension (b) mm 7.6
Lug Hole (h min) mm 3.5

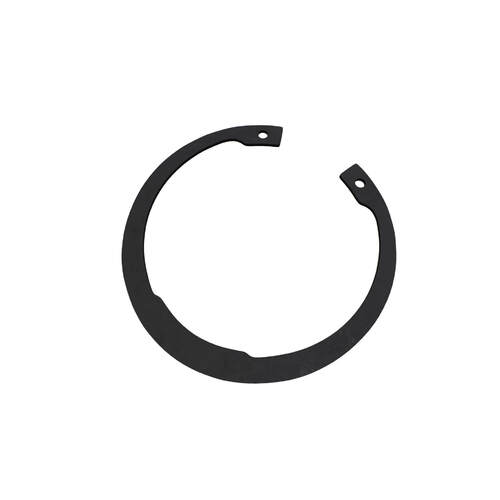

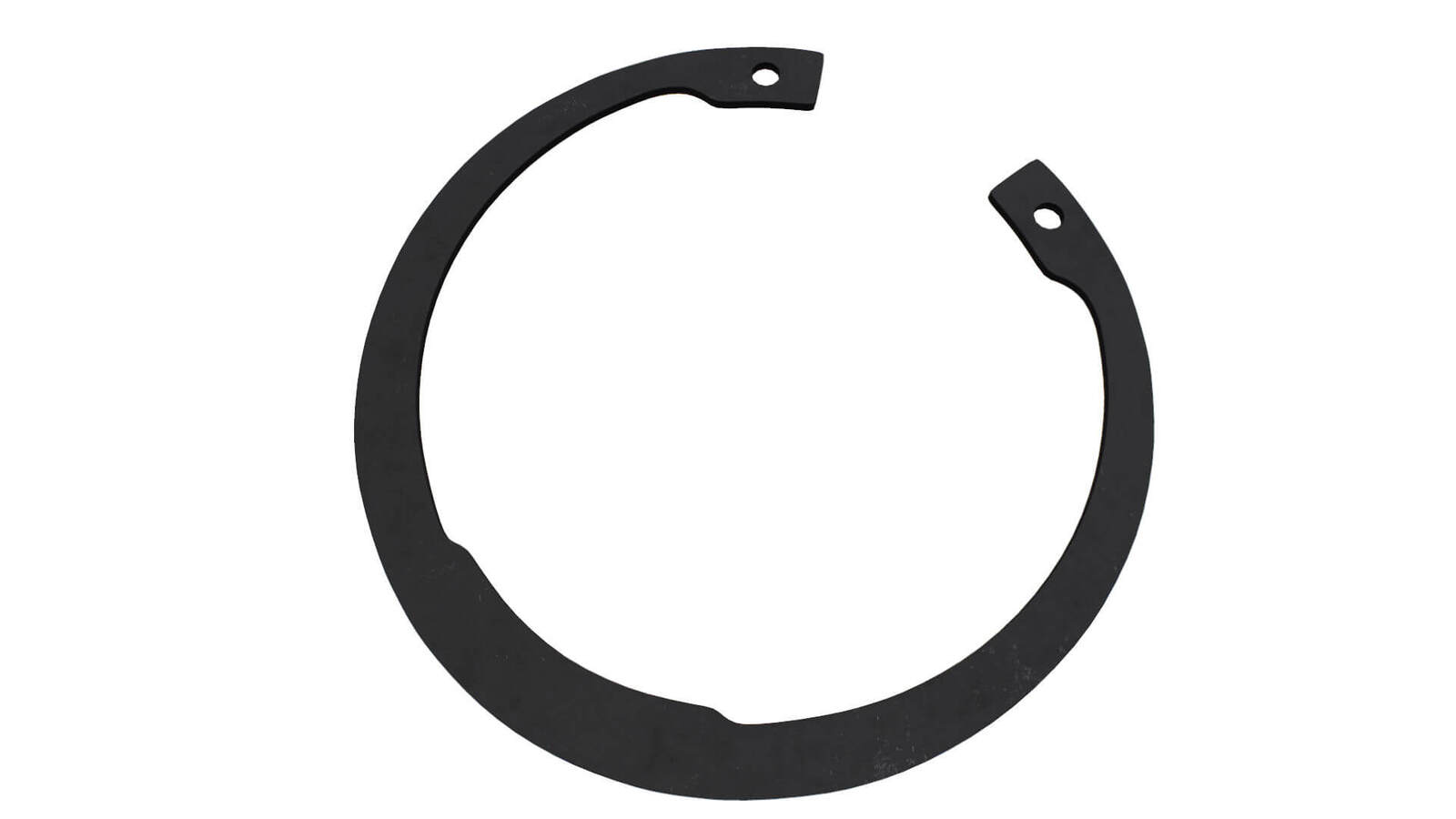

• Type Internal Circlips
• Item Type (Internal/External)
