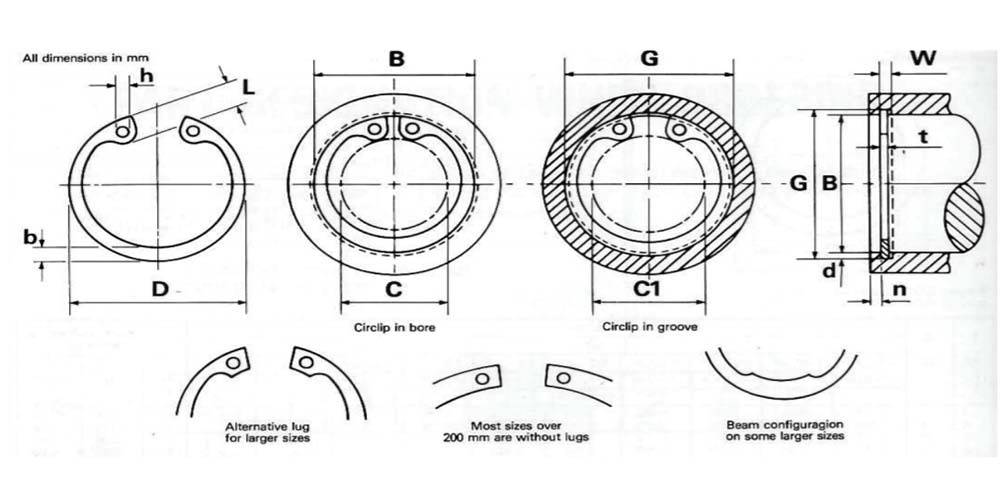

Specifications
- AIMS SKU A0100358
- Bore Diameter (D) mm 80
- Groove Diameter (G) mm 83.5
- Tolerance (G) (+)0.35, (-) 0.00
- Groove Width (W) mm 2.65
- Tolerance (W) (+)0.14, (-)0.00
- Shoulder Length (n) mm 0.3
- Radial Depth Of Groove (d ~) 1.75
- Thickness (t) mm 2.5
- Tolerance (t) (+)0.00,(-)0.07
- Unstressed Diameter (D) mm 85.5
- Tolerance (D) (+)1.30, (-)0.54
- Circlip In Bore ( C ) mm 62.1
- Circlip In Groove (C1) mm 66.5
- Lug Max (Lmax) mm 8.5
- Beam Dimension (b) mm 7
- Lug Hole (h min) mm 3
- Type Internal Circlips
- Item Type (Internal/External)
SKU: A0100358

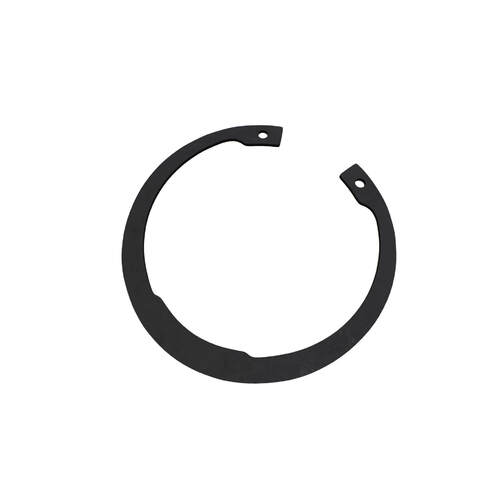

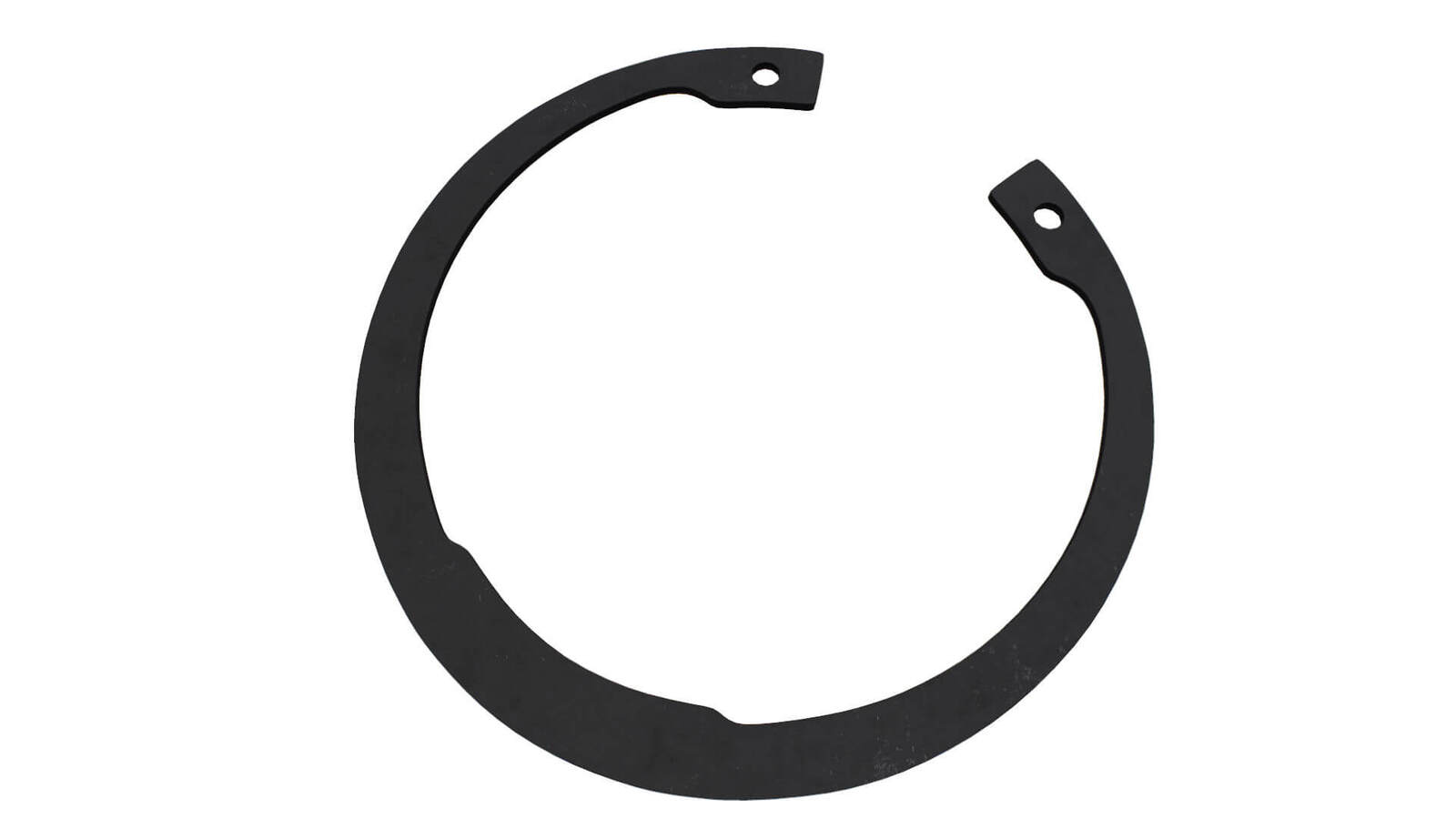

Circlip Internal 80mm
Circlip Internal
$3.00
