Specifications

AIMS SKU A0100353
Bore Diameter (D) mm 70
Groove Diameter (G) mm 73
Tolerance (G) (+)0.30, (-)0.00
Groove Width (W) mm 2.65
Tolerance (W) (+)0.14, (-)0.00
Shoulder Length (n) mm 4.5
Radial Depth Of Groove (d ~) 1.5
Thickness (t) mm 2.5
Tolerance (t) (+)0.00,(-)0.07
Unstressed Diameter (D) mm 74.5
Tolerance (D) (+)1.10, (-)0.46
Circlip In Bore ( C ) mm 53.6
Circlip In Groove (C1) mm 57.4
Lug Max (Lmax) mm 7.8
Beam Dimension (b) mm 6.2
Lug Hole (h min) mm 3

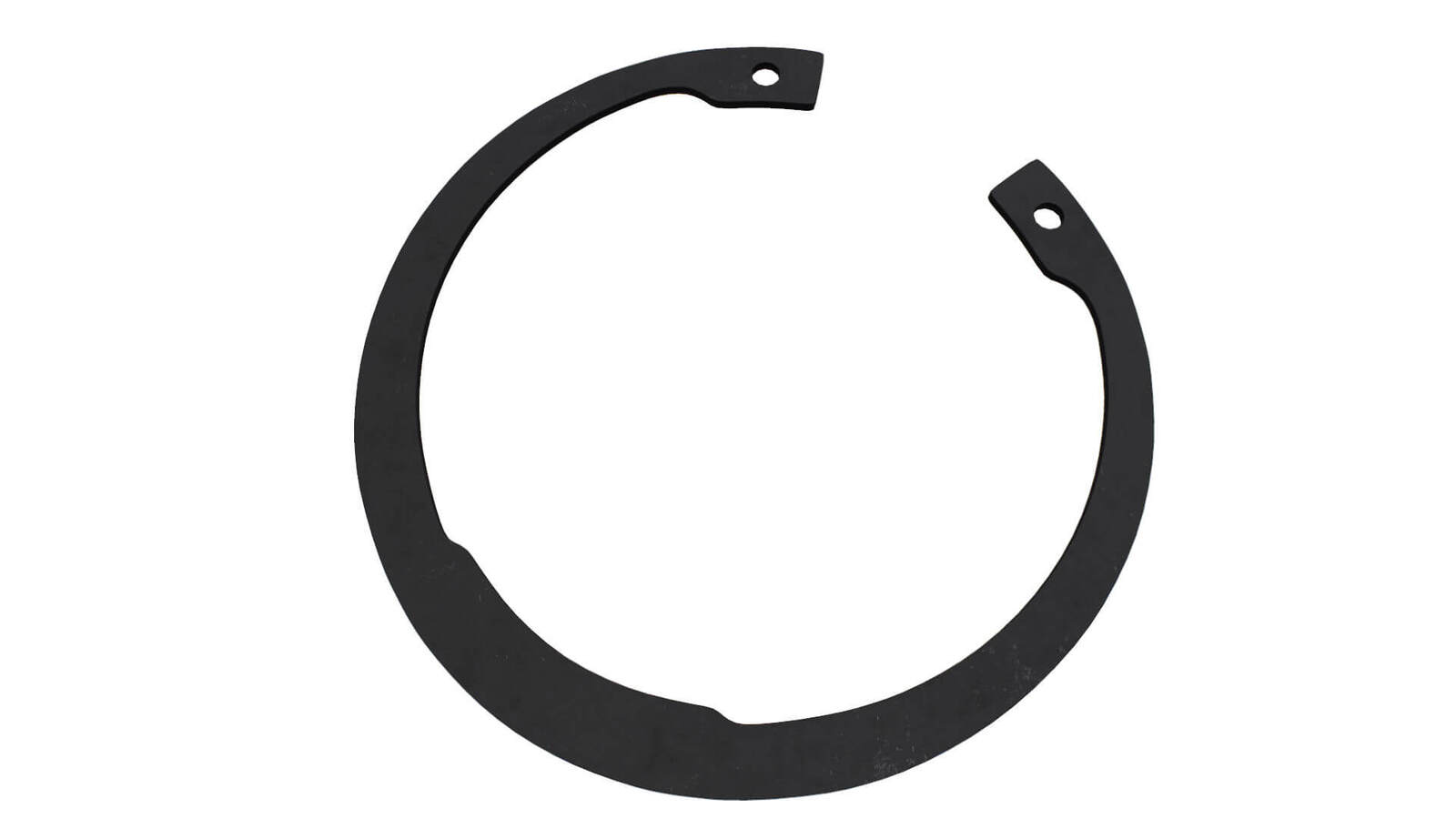

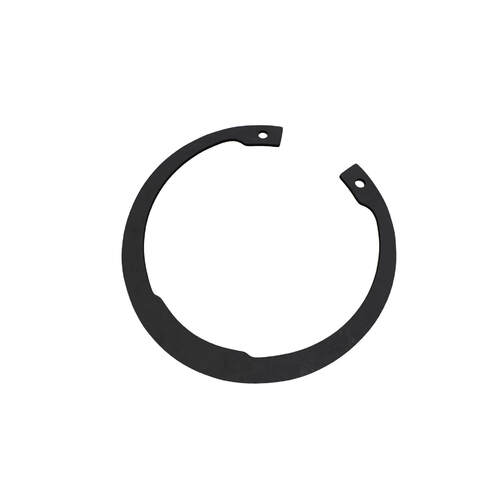

• Type Internal Circlips
• Item Type (Internal/External)
