Specifications

AIMS SKU A0100301

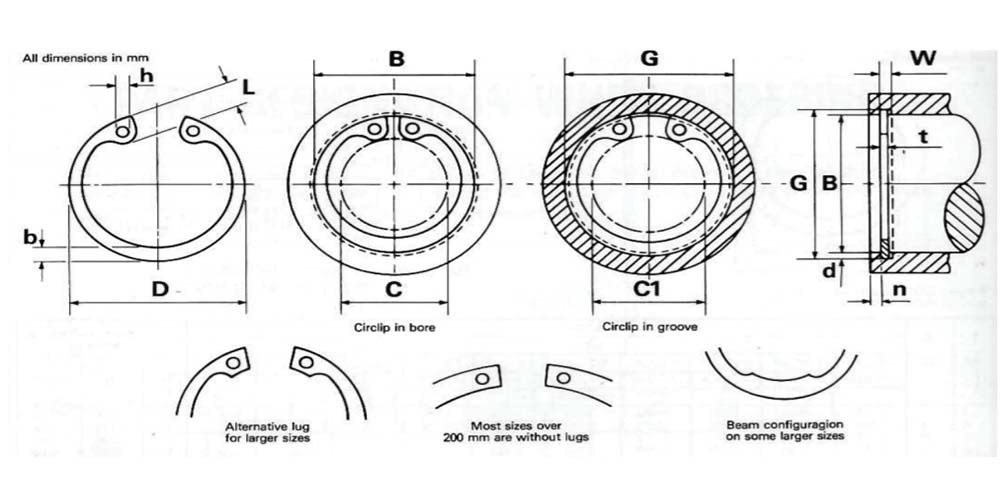

Bore Diameter (D) mm 14
Groove Diameter (G) mm 14.6
Tolerance (G) (+)0.11, (-)0.00
Groove Width (W) mm 1.1
Tolerance (W) (+)0.14, (-)0.00
Shoulder Length (n) mm 0.9
Radial Depth Of Groove (d ~) 0.3
Thickness (t) mm 1
Unstressed Diameter (D) mm 15.1
Tolerance (D) (+)0.36, (-)0.10
Circlip In Bore ( C ) mm 6.2
Circlip In Groove (C1) mm 7.2
Lug Max (Lmax) mm 3.7
Beam Dimension (b) mm 1.9
Lug Hole (h min) mm 1.7

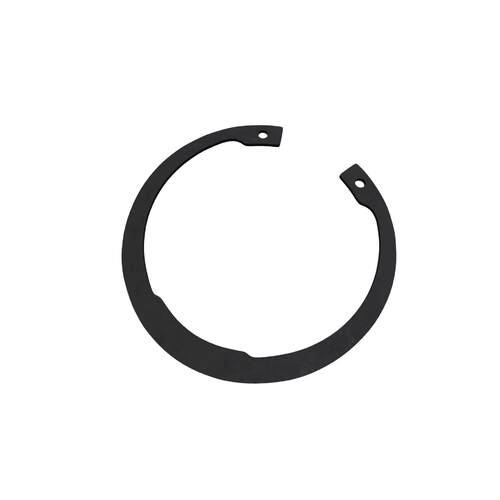

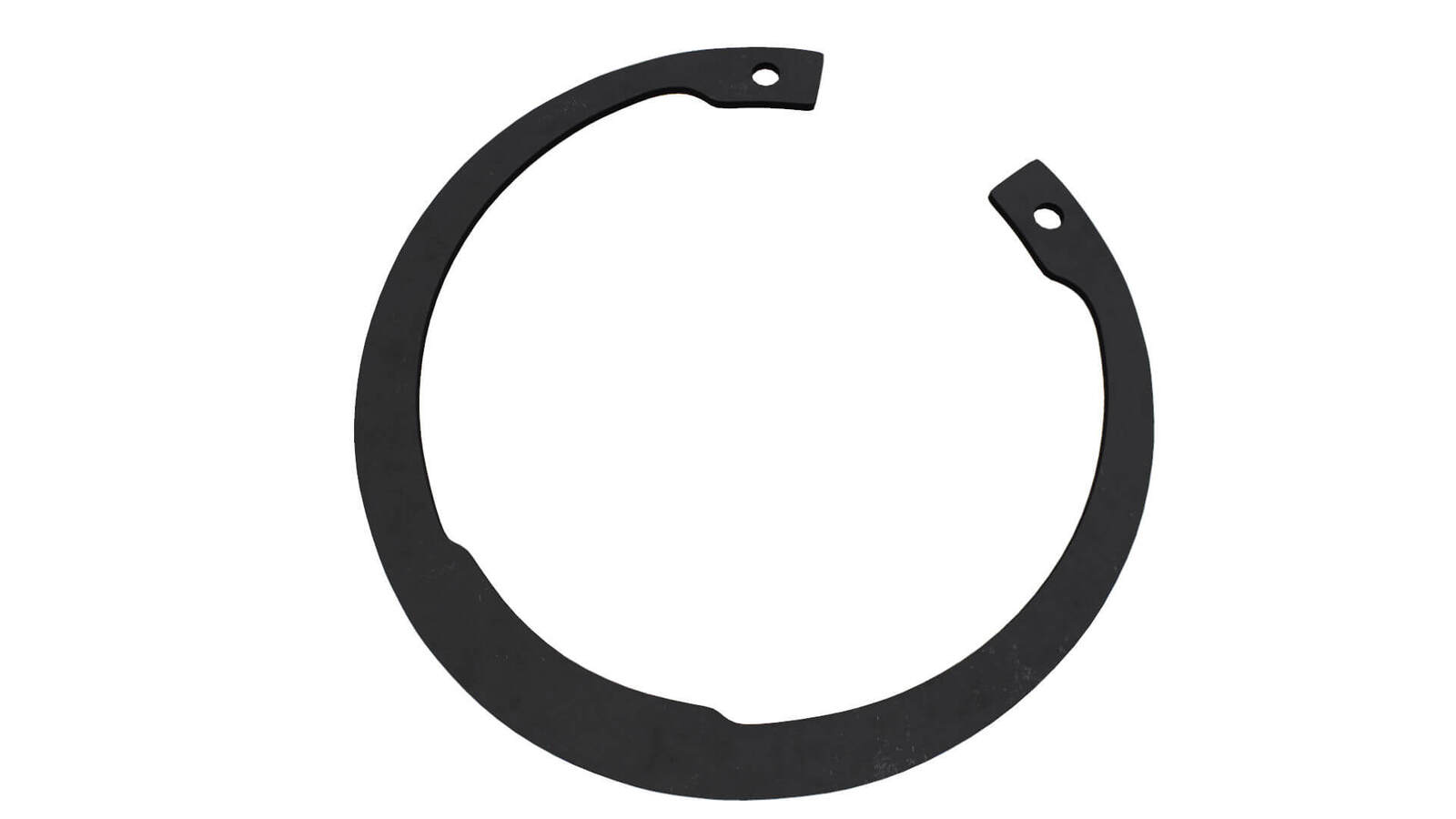

• Type Internal Circlips
• Item Type (Internal/External)
