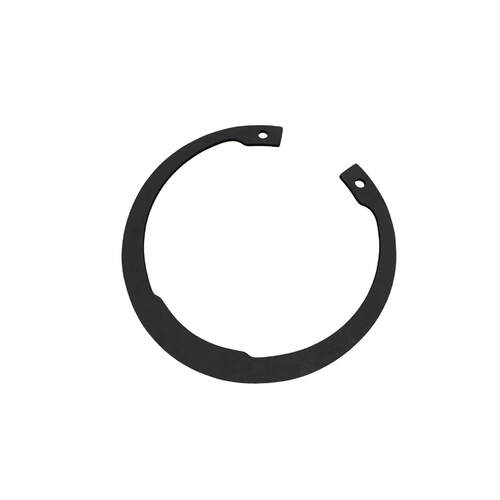

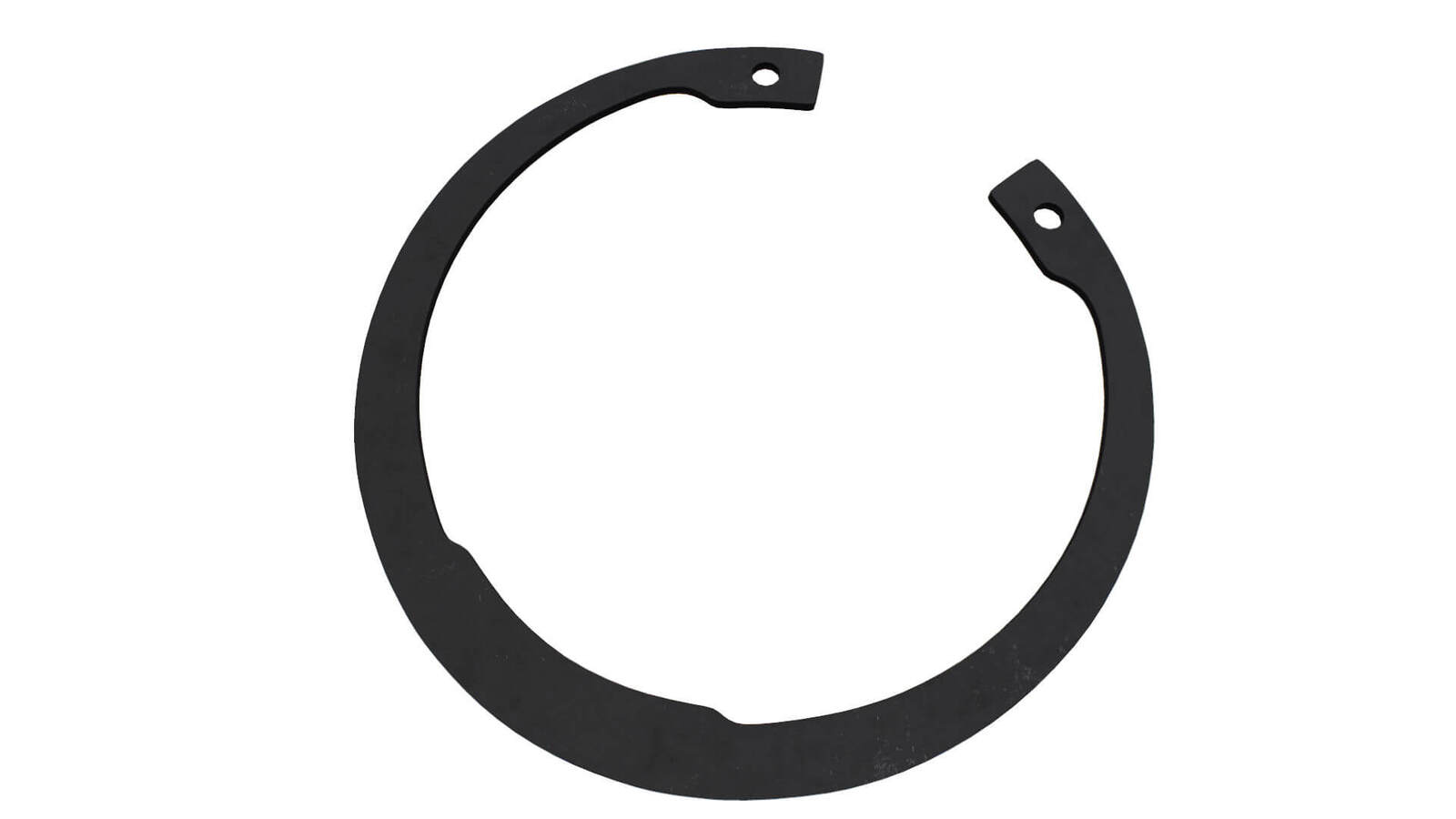

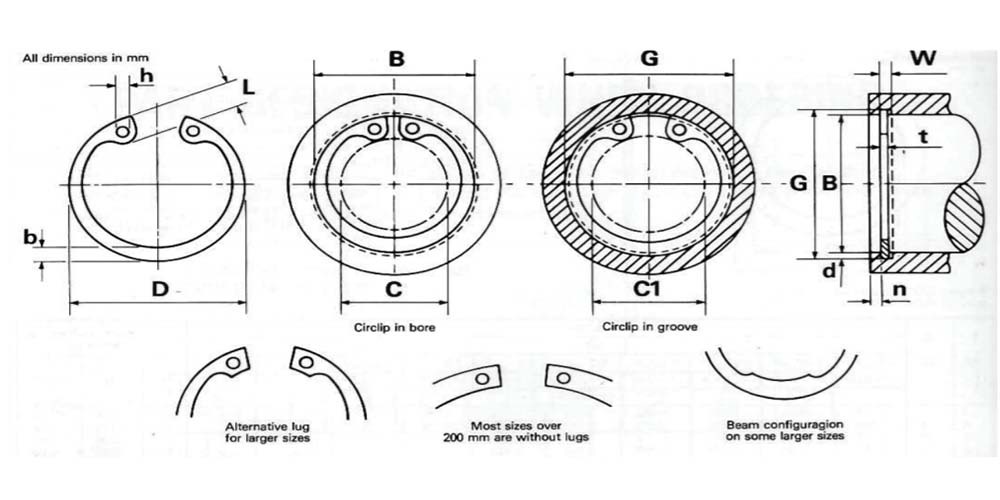

Specifications

AIMS SKU A0100387
Bore Diameter (D) mm 145
Groove Diameter (G) mm 149
Tolerance (G) (+)0.63, (-)0.00
Groove Width (W) mm 4.15
Tolerance (W) (+)0.18, (-)0.00
Shoulder Length (n) mm 6
Radial Depth Of Groove (d ~) 2
Thickness (t) mm 4
Tolerance (t) (+)0.00, (-)0.10
Unstressed Diameter (D) mm 152
Tolerance (D) (+)1.50, (-)0.63
Circlip In Bore ( C ) mm 121
Circlip In Groove (C1) mm 126
Lug Max (Lmax) mm 11.4
Beam Dimension (b) mm 10.9
Lug Hole (h min) mm 4
• Type Internal Circlips
• Item Type (Internal/External)
