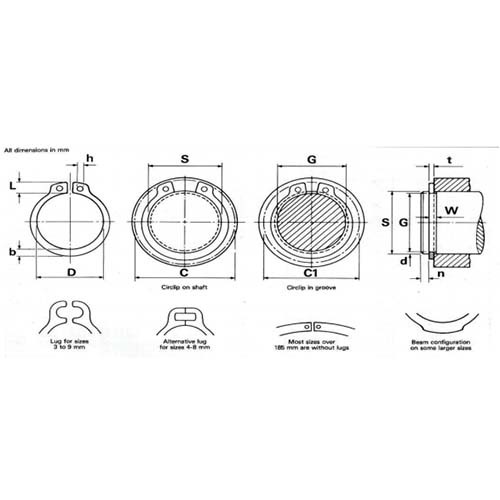

Specifications
- AIMS SKU A0150002
- Groove Diameter (G) mm 52
- Tolerance (G) (+)0.00 (-)0.30
- Groove Width (W) mm 3
- Tolerance (W) (+)0.14 (-)0.00
- Shoulder Length (n) mm 4.5
- Radial Depth Of Groove (d ~) 1.5
- Thickness (t) mm 2
- Tolerance (t) (+)0.00 (-)0.07
- Unstressed Diameter (D) mm 50.8
- Tolerance (D) (+)0.46 (-)1.10
- Circlip In Bore ( C ) mm 70.2
- Circlip In Groove (C1) mm 66.4
- Lug Max (Lmax) mm 7.2
- Beam Dimension (b) mm 5.4
- Lug Hole (h min) mm 2.5
- Shaft Diameter (S) mm 55
- Type External
SKU: A0150002

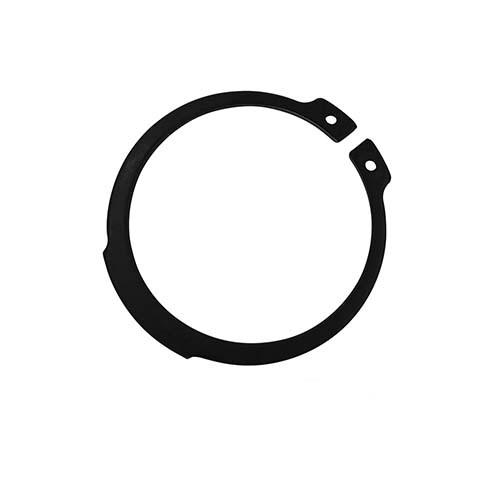

Circlip External - Heavy Duty 55 x 3mm
Circlip External - Heavy Duty
$6.30
