Description

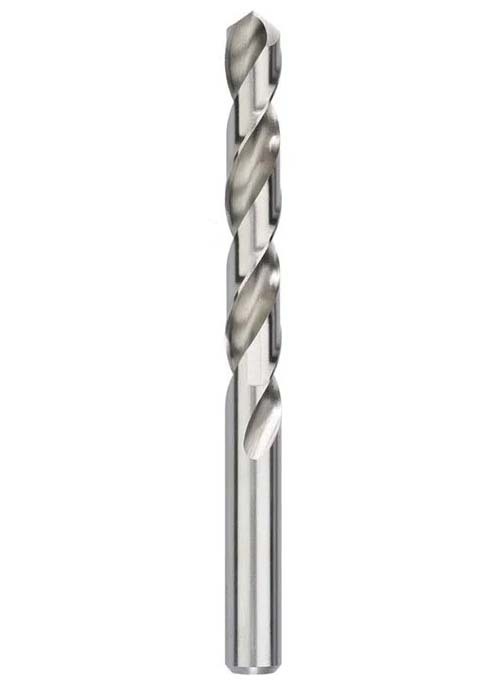

Bordo Wire Gauge Quick Silver M2-HSS Twist Drill Bit

  • Bordo Wire Gauge Quick Silver M2-HSS Twist Drills.
  • 118° Split Point (crankshaft point).
  • Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
  • 118° point angles are ideal for use in materials such as mild steel and cast iron.
  • The 118° point creates easily controlled chips which are wide and thin.
  • Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
  • These tools are suitable for general purpose use, particularly for non-ferrous applications.
  • Gauge size drill calculations are generally made utilising a reference book or table.
  • For example, to drill a hole which is 10 thou (thousandth of an inch = .001) bigger than a 1/8" bolt, the user must first work out that 1/8" is 125 thou, so the required hole size is 135 thou. Using a reference table establishes that you would need a number 29.
  • Number drill bit gauge sizes are analogous to, but different from, American wire gauge.
  • Number gauge is most commonly used from size 80 (the smallest) to size 1 (the largest) followed by letter gauge size A (the smallest) to size Z (the largest).
  • Number gauge is actually defined down to size 97, but these smallest sizes are very rarely used.

Specifications

  • AIMS SKU A0199022
  • Brand Bordo
  • Model Number 2013-37
  • Barcode Number 9326518097235
  • Flute Length (inch) 1-7/16
  • Overall Length (OAL) mm 2-1/2
  • Diameter in (mm) 2.63
  • Spindle Speed Stainless Steel RPM 1453
  • Spindle Speed Tool Steel RPM 2180
  • Spindle Speed Cast Iron RPM 2906
  • Spindle Speed Malleable Iron RPM 3270
  • Spindle Speed Med. Carbon Steel RPM 3633
  • Spindle Speed Aluminium/Brass RPM 7387
  • Spindle Speed Wood/Plastic RPM 11020
  • Flute Type 30° Helix
  • Type of Point 118° Std Chisel
  • Feed per Revolution (mm) 0.08
  • Spindle Speed Free Cutting Stl RPM 5207
  • Diameter (Gauge) 37
  • Type Jobber Drill Bit
  • Material M2-HSS
  • Surface Finish Bright
SKU: A0199022

Bordo Bright M2-HSS Jobber Drill Bit 37 Gauge x 2.63mm - Pack of 12

Bordo Wire Gauge Quick Silver M2-HSS Twist Drill Bit

$69.05
RRP $102.56
SAVE $33.51 (33%)
