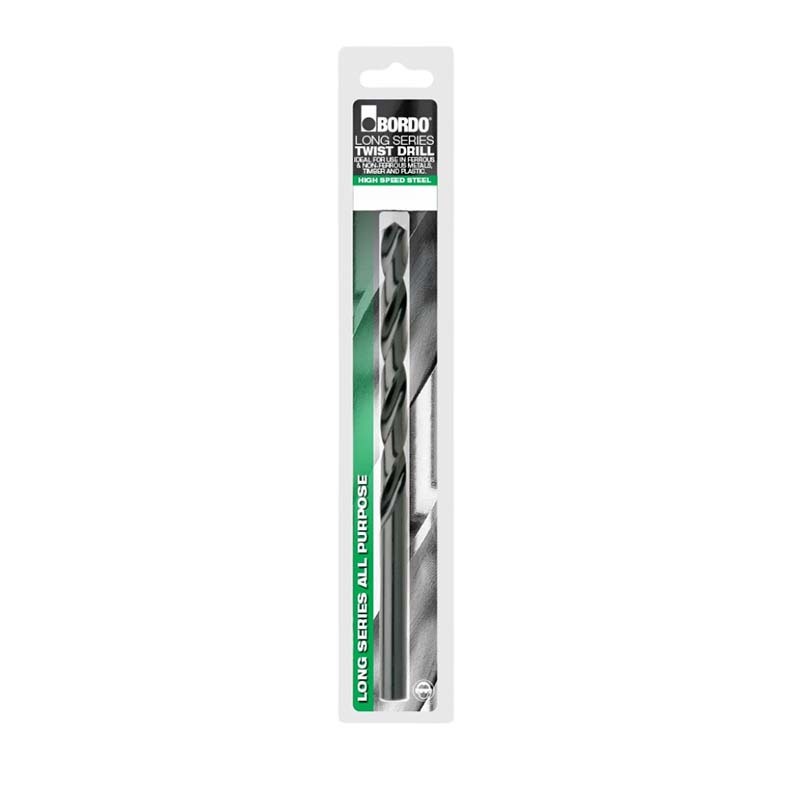

Bordo 13/64" Long Series HSS Drill Bit Imperial (Clam Shell) - 2500-13/64S

Description

Bordo Long HSS Black Drill Bit Clam Shell (2500) - Imperial

ANSI B94-11.
118° chisel point with 30° helix.
Chisel point is suitable for general purpose drilling.
Black Finish Twist Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating.
This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding. The result is increased tool life.
Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.

Specifications

AIMS SKU A0199823

Brand Bordo

Model Number 2500-13/64S

Barcode Number 9326518019121

Diameter (inch) 13/64

Flute Length (mm) 92

Overall Length (OAL) mm 152

Surface Finish Black

Diameter in (mm) 5.16

Spindle Speed Stainless Steel RPM 741

Spindle Speed Tool Steel RPM 1111

Spindle Speed Cast Iron RPM 1481

Spindle Speed Malleable Iron RPM 1667

Spindle Speed Med. Carbon Steel RPM 1852

Spindle Speed Aluminium/Brass RPM 3765

Spindle Speed Wood/Plastic RPM 5617

Flute Type 30° Helix

Type of Point 118° Std Chisel

Feed per Revolution (mm) 0.11

Spindle Speed Free Cutting Stl RPM 2654

Type Long Drill Bit
Material HSS
