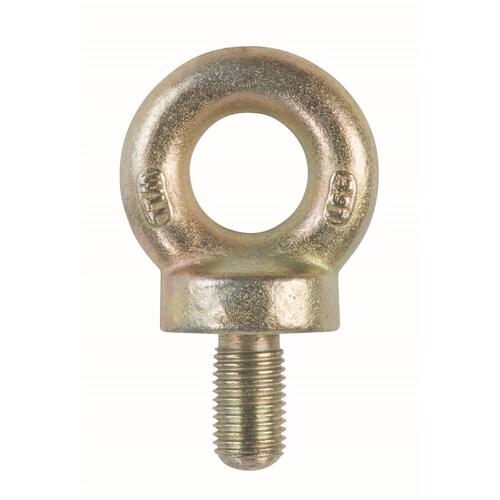

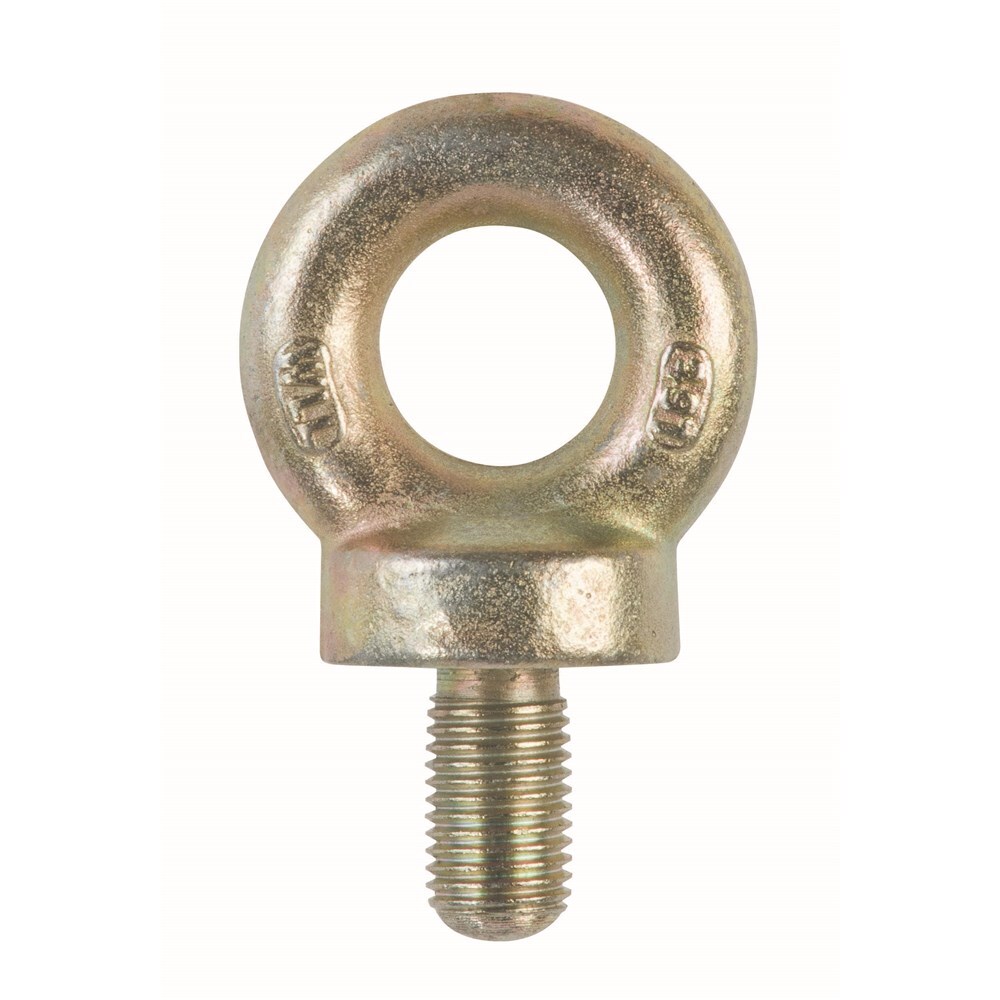

Beaver Lifting Collared Eyebolt With Metric Thread BS 4278 24mm x 2.5T WLL

Description

Beaver Lifting Collared Eyebolt With Metric Thread BS 4278

Beaver lifting eyebolts are predominately used for lifting applications. This eyebolt complies to AS 2317.
It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.

Specifications

AIMS SKU A0182666

Brand Beaver

Model Number 359024

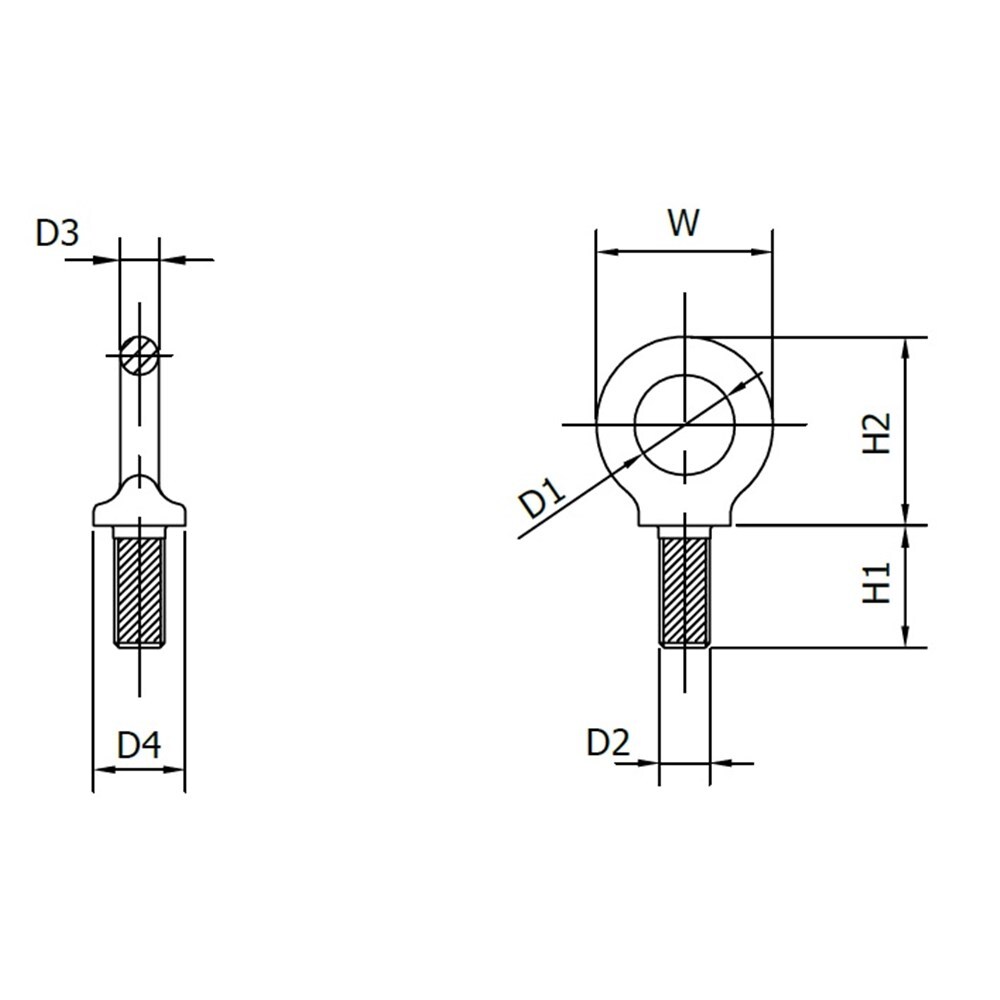

Size (mm) 24

D1 (mm) 35

D2 (mm) 24

D3 (mm) 42

w (mm) 77

H1 (mm) 40

D4 (mm) 52

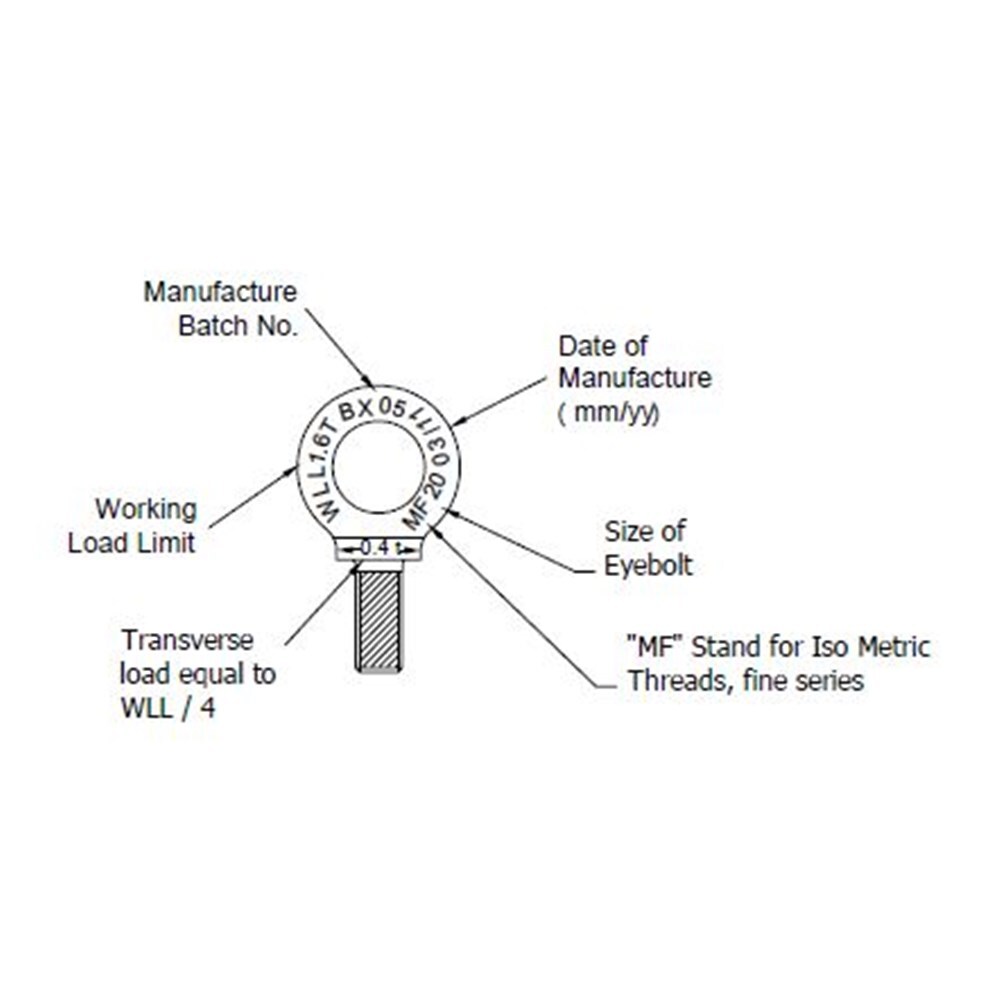

WLL (T) 2.5

Weight (kg/ea) 0.85

Transverse Load Tonne 0.62

H12(mm) 84

Type Eye Bolt
Finish Zinc Dichromate
