Description

***Catalogue Dimensions are Reference Only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

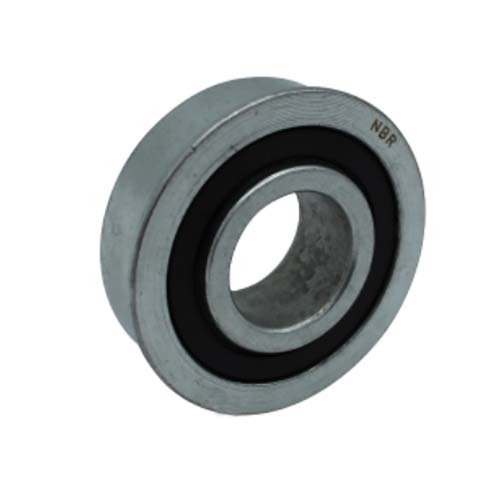

Bearing NBR Unground Zinc Plated Rubber Seal

  • Semi-precision bearing for slow-speed applications like wheels and rollers.
  • All unground bearings are Zinc Plated surfaces with rubber seals

Specifications

  • AIMS SKU A0170931
  • Weight (kg) 0.046

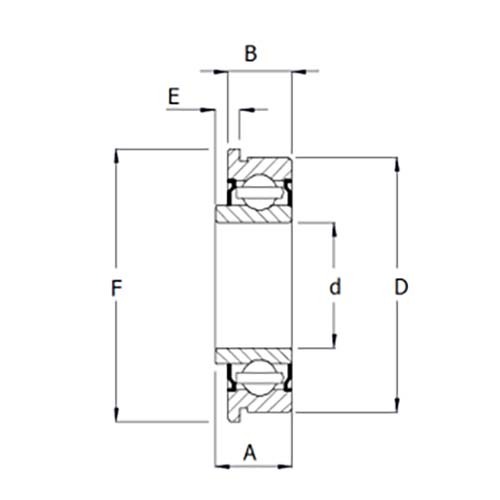

  • A (mm) 11.90
  • F (mm) 38.00
  • E (mm) 3.00
  • b (mm) 10.50
  • Outer Diameter (mm) 34.92
  • Bore Diameter 15.87mm
  • Bore Diameter (in) 5/8
  • Outer Diameter (in) 1-3/8
  • Bore Diameter x Outer Diameter 5/8 x 1-3/8"
  • Type Unground Bearing
SKU: A0170931

Bearing NBR Unground S22104SP Zinc Plated Rubber Seal 5/8 x 1-3/8" x 10.50mm

Bearing NBR Unground Zinc Plated Rubber Seal
