Austlift Wedge Socket Open Type 12mm - 308012

Description

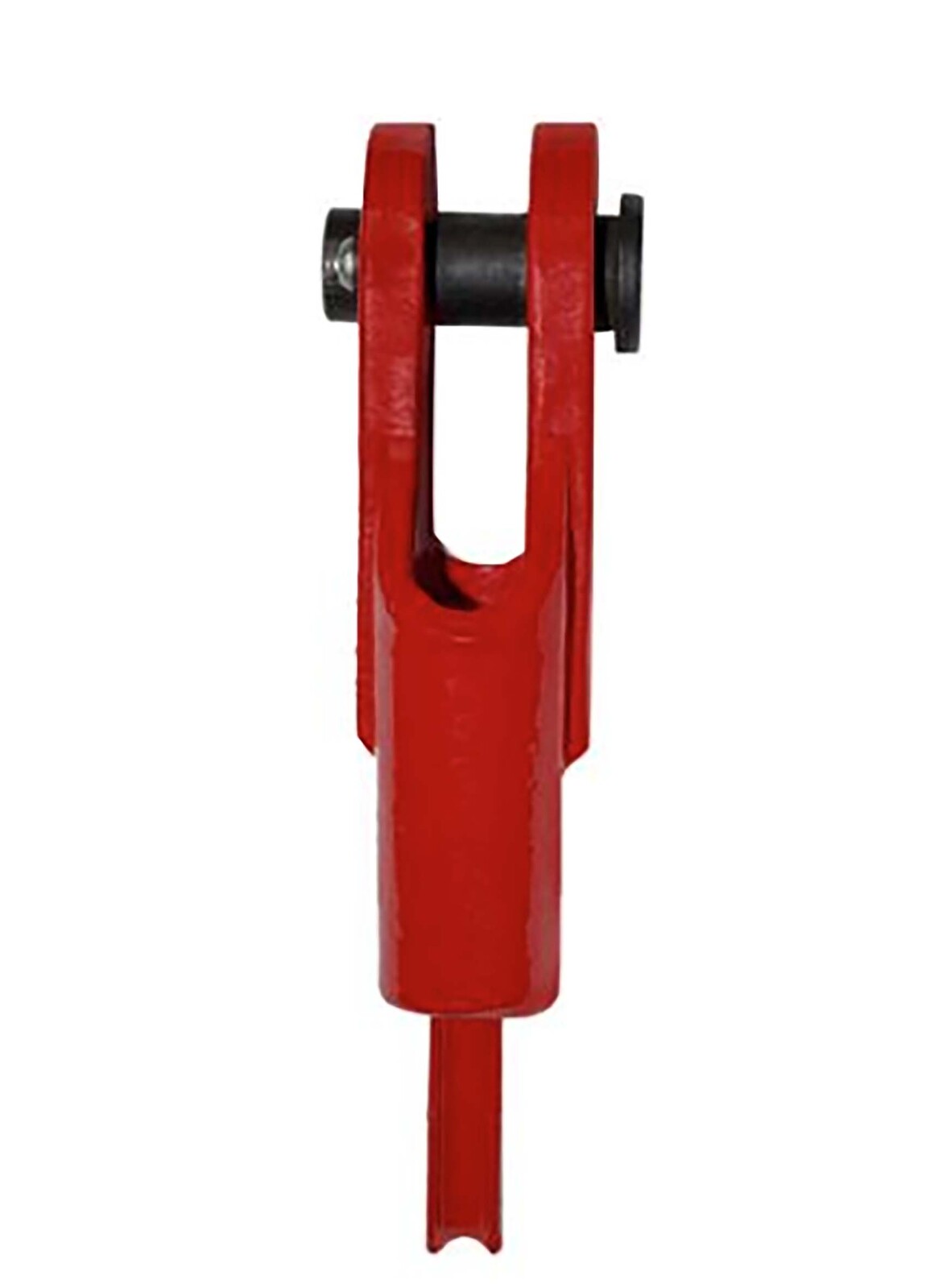

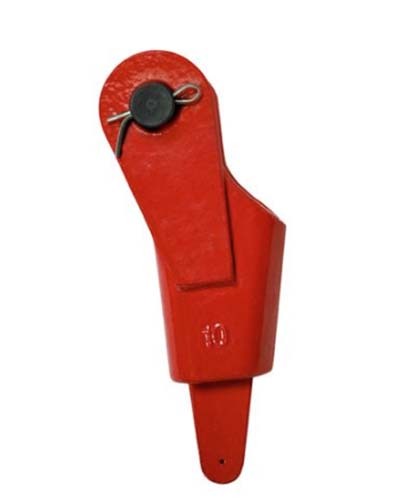

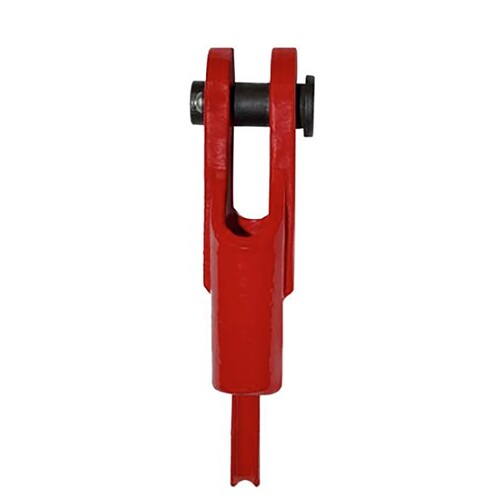

Austlift Open Wedge Socket

Wedge Socket (Open Type, Clevis)
Austlift open wedge socket is fitted to a wire rope.
The nominal diameter of the wire rope shall be equal to the nominal size of the wedge-type socket and the loaded end of the rope shall enter the socket body so that when loaded it will not bend where it leaves the socket body.
Suitable for rope termination such as crane rope applications.
Manufactured from forged alloy steel material.
Proof loaded 2 x WLL and break tested to 4 x WLL.
Complies to AS2740 with test certificate with each fitting.

Specifications

AIMS SKU A0208294

Brand Austlift

Model Number 308012

Barcode Number 9345339012739

Size (mm) 12

Dimension A (mm) 155

Dimension B (mm) 21.3

Dimension C (mm) 66

Dimension D (mm) 25

Weight (kgs) 1.7

Dimension R (mm) 30

WLL 2 T

Group Code 308010
Barcode 9345339012722
Type Open Wedge Socket
