Description

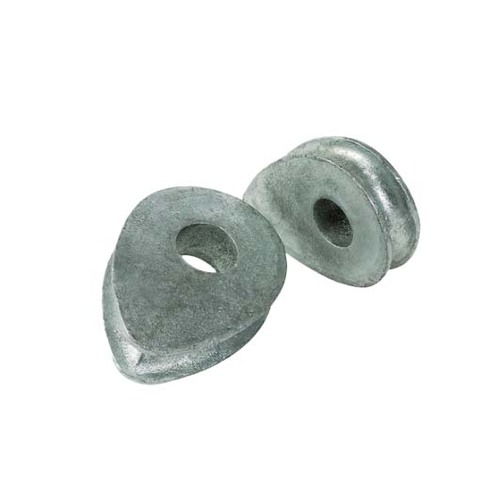

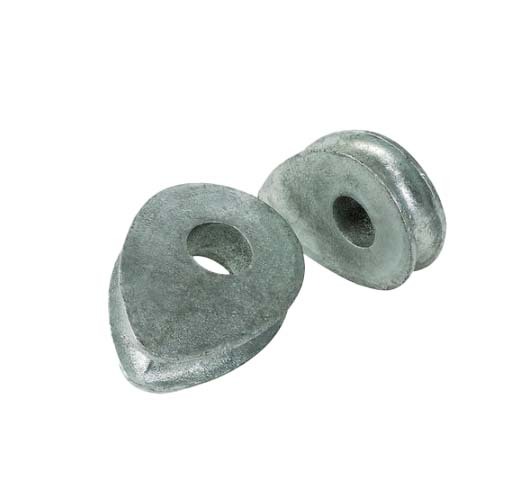

Austlift Thimble Solid Eye Pre-Drilled Hole

  • Pre-drilled Solid Eye Thimble.
  • Solid thimbles are recommended where loads can be connected to a nolt or pin.
  • Made from heat treated high tensile steel material.
  • Hot dipped galvanized finish.
  • Other drilled hole sizes are available at additional charge.
  • Refer to the Australian Standards for advise on drilling larger hole sizes.
  • For Lifting Purposes.

Specifications

  • AIMS SKU A0207948
  • Brand Austlift
  • Model Number 302605
  • Barcode Number 9345339011824
  • Size (mm) 18
  • MBF (kN) 204
  • Dimension A (mm) 130
  • Dimension B (mm) 90
  • Dimension C (mm) 28.5
  • Dimension E (mm) 20
  • Weight (kgs) 1.19
  • Dimension W (mm) 30
  • Pre Drilled (Hole Size) 30mm
  • Type Thimble Solid Eye
SKU: A0207948

Austlift Thimble Solid Eye Pre-Drilled Hole 18mm, 30mm Hole - 302605

Austlift Thimble Solid Eye Pre-Drilled Hole

$24.22
