Description

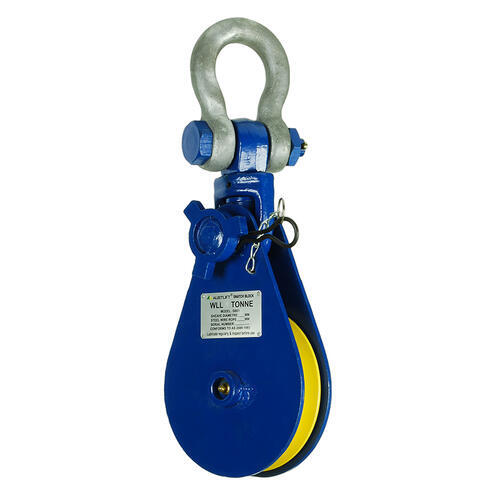

Austlift Snatch Block With Shackle Head

Austlift manually operated snatch blocks are popular in mining, construction, off shore rigging and heavy duty lifting applications. Complies with AS/NZS 2089.

  • Made from hi-tensile steel body and cast steel sheave.

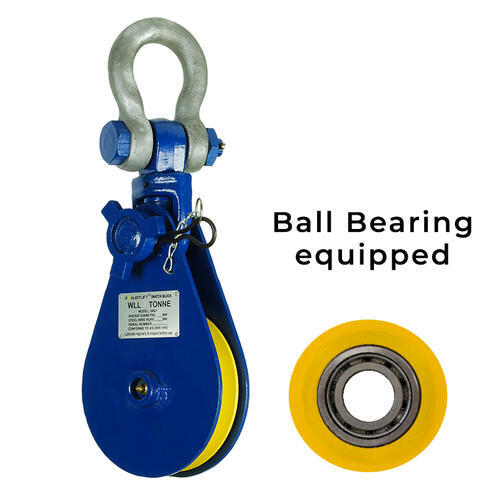

  • Grease nipples fitted with roller bearings (2-50T) and brass bush bearings (2T).
  • Blocks come with swivel bow shackle.
  • Drop forged, heat treated swivel shackle.

Specifications

  • AIMS SKU A0168369
  • Brand Austlift
  • Model Number 140122
  • Weight (kg) 90
  • Wire Rope Dia (mm) 28 - 32
  • Sheave Diameter (mm) 355
  • Dimension B (mm) 365
  • Dimension C (mm) 140
  • WLL (T) 22
  • Height A (mm) 952
  • Type Snatch Block With Shackle Head
  • Material Steel Body / Cast Steel Sheave
SKU: A0168369

Austlift Snatch Block With Shackle Head 22T 355mm Suits 28-32mm Steel Rope Dia

Austlift Snatch Block With Shackle Head

$2,004.21
