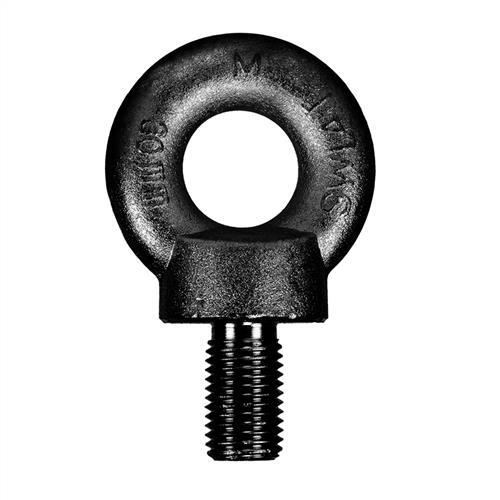

Austlift Eye Bolt BS4278 Black (Metric Thread) M12 x 0.4T SWL

Description

Austlift Eye Bolt BS4278 Black (Metric Thread)

BS4278 eye bolts are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for the chain, wire rope, and other assemblies where required.x
Conforms to AS2317, marked with working load limit in tonne, nominal size, quality grade, batch numbered, and supplier identification.
Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
Test certificates are supplied upon request.

Specifications

AIMS SKU A0168882

Brand Austlift

Model Number 603012B

Size (mm) M12

D1 (mm) 15

D2 (mm) 22

Pitch (mm) 1.75

Weight (kg) 0.127

D (mm) 12

H (mm) 40.5

w (mm) 41

Color Black

H1 (mm) 18

SWL (T) 0.4

Type Eye Bolt
System of Measurement Metric
Standard BS4278
