Description

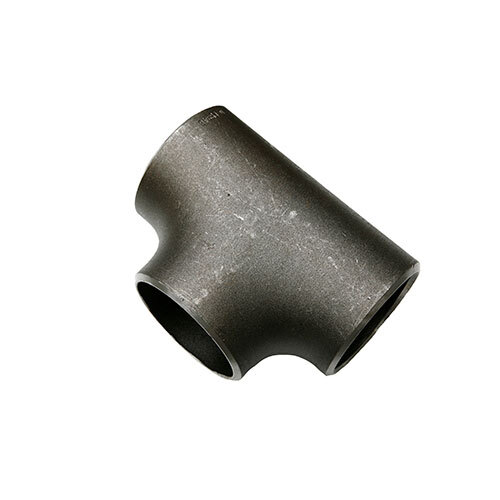

AAP Reducing Tee Buttweld Std

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • Smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078321
  • Brand AAP
  • Model Number WT9896
  • Pipe Size (inch) 8 x 6
  • Wall Thickness 8.2
  • Approx. Weight kg/pc 18

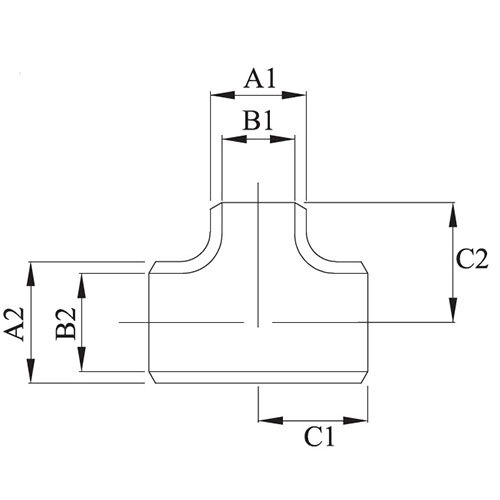

  • Larger Diameter (A1) mm 219.1
  • Larger Diameter (A2) mm 202.7
  • Smaller Diameter (B1) mm 168.3
  • Smaller Diameter (B2) mm 154.1
  • Center To End (C1) mm 177.8
  • Center To End (C2) mm 168.1
  • Type Equal Tee
  • Pipe Fitting Connection Buttweld
SKU: A0078321

AAP 8" x 6" Reducing Tee Buttweld STD ASTM A234 WT9896

AAP - Tee - Buttweld

$259.64
RRP $559.23
SAVE $299.59 (54%)
