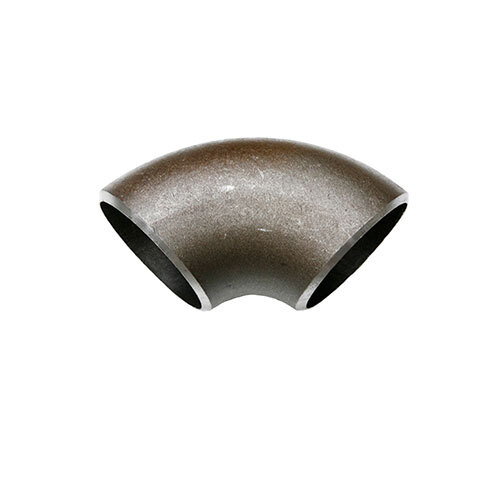

AAP 90° Short Radius Elbow Buttweld Std

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.

The advantages of Buttweld include:

  • Welding a fitting to the pipe means that is permanently leak
  • The continuous metal structure formed between pipe and fitting adds strength to the system.
  • The smoother inner surface and gradual direction flanges reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion.
  • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078271
  • Brand AAP
  • Model Number WE98SR
  • Pipe Size (inch) 8

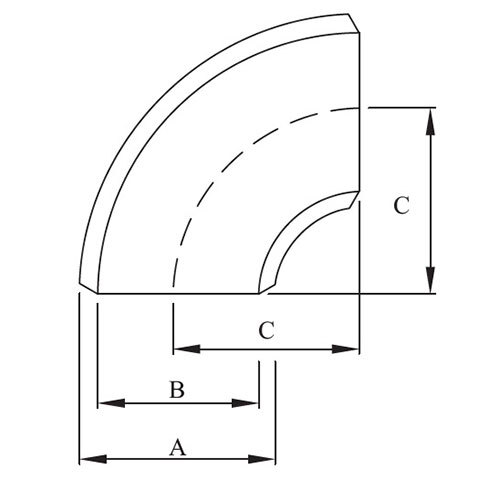

  • Outer Diameter (A) mm 219.1
  • Inner Diameter (B) mm 202.7
  • Center To End (C) mm 203.2
  • Wall Thickness 8.2
  • Approx. Weight kg/pc 13.5
  • Type Short Radius Elbow
  • Pipe Fitting Connection Buttweld
  • Specific Fitting Shape 90deg
SKU: A0078271

AAP 8" Short Radius 90° Elbow Buttweld STD ASTM A234 WE98SR

AAP - 90° Elbow - Buttweld

$154.17
RRP $296.47
SAVE $142.30 (48%)
