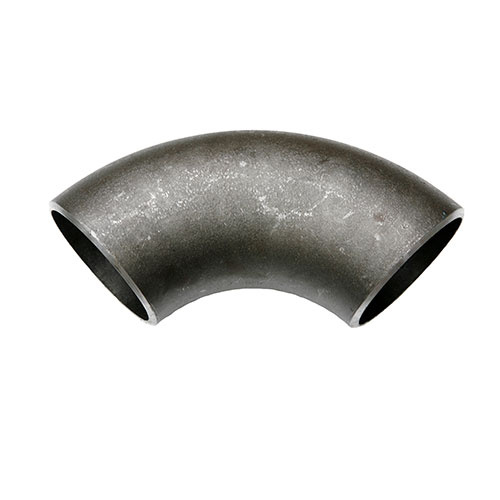

AAP 8" Long Radius 90° Elbow Buttweld SGP JIS 2311 WZE98

Description

AAP 90° Long Radius Elbow Buttweld Sgp

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
The advantages of Buttweld include:
- Welding a Fitting to the pipe means it is permanently leak
- The continuous metal structure formed between pipe and Fitting adds strength to the
- The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
- A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078374

Brand AAP

Model Number WZE98

Pipe Size (inch) 8

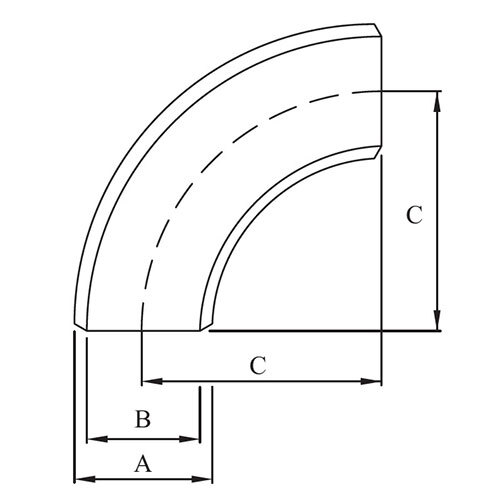

Outer Diameter (A) mm 216.3

Inner Diameter (B) mm 204.7

Center To End (C) mm 304.8

Wall Thickness 5.8

Approx. Weight kg/pc 13.5

Type Long Radius Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 90deg
