Description

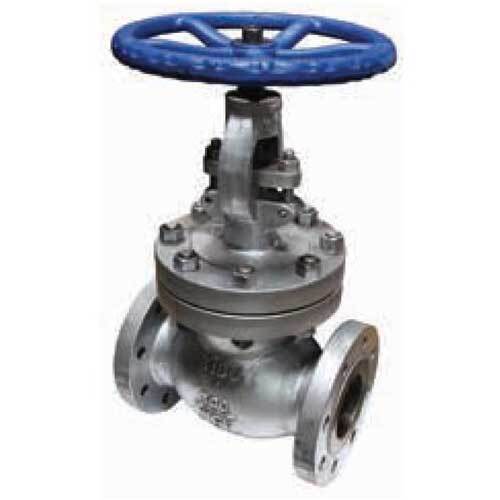

AAP Cast Steel Flanged Globe Valve ANSI 300

Applications:

  • Steam service, Oil and Petrochemical industry

Specification:

  • Design and Manufacture - ANSI B16.34
  • Flange Dimensions - ANSI B16.5
  • Face to Face Dimensions - ANSI B16.10
  • Max Working Temperature - 440°C
  • Cold Working Pressure - 5100kPa

Material List

  • Body - ASTM A216 WCB
  • Seat Ring - ASTM A105+ERCoCR-A
  • Bonnet Gasket - 13Cr+Graphite
  • Packing - Graphite
  • Pin - Carbon Steel
  • Stem Nut - A1 - Bronze
  • Screw - Carbon Steel
  • Handwheel - ASTM A356

 About Globe Valves:

  • A globe valve is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.
  • Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle.
  • This has an opening that forms a seat onto which a movable plug can be screwed in to close the valve.
  • The plug is also called a disc or disk.
  • In globe valves, the plug is connected to a stem which is operated by screw action in manual valves.
  • Globe valves are typically used for applications requiring throttling and frequent operation.

Specifications

  • AIMS SKU A0081115
  • Brand AAP
  • Model Number VGL30065
  • Pipe Size (inch) 2-1/2
  • Pipe Size (mm) 65
  • Approx. Kg/pc 50

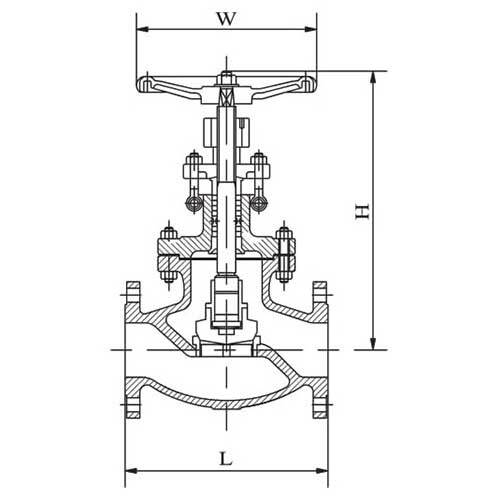

  • Valve Length (l) 292.1
  • Height of handle from Valve (H) 410
  • Valve Handle Length (W) 250
  • Number of holes 8
  • Hole Diameter 22
SKU: A0081115

AAP 65mm, 2-1/2" Cast Steel Flanged Globe Valve ANSI 300 VGL30065

AAP Globe Valve flanged

$741.93
RRP $1,384.92
SAVE $642.99 (46%)
