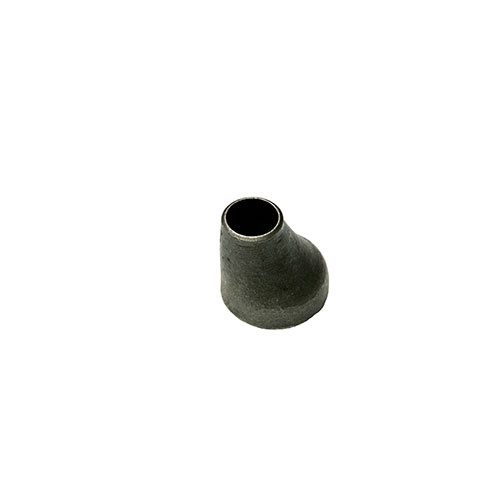

AAP 6" x 5" Eccentric Reducer Buttweld STD ASTM A234 WER9695

Description

AAP Eccentric Reducer Buttweld Std

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
The advantages of Buttweld include:
- Welding a Fitting to the pipe means it is permanently leak
- The continuous metal structure formed between pipe and Fitting adds strength to the
- Smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
- A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078223

Brand AAP

Model Number WER9695

Pipe Size (inch) 6 x 5

Wall Thickness 7.1

Approx. Weight kg/pc 3.7

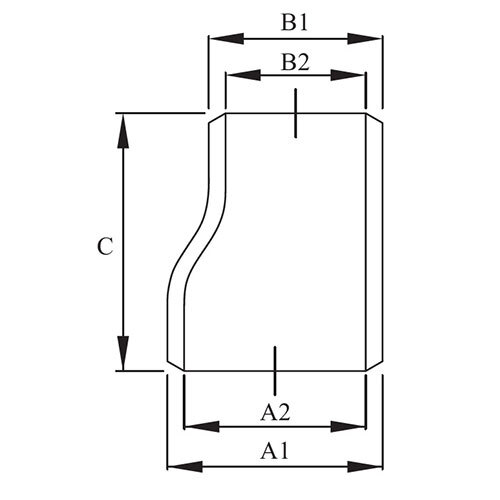

Larger Diameter (A1) mm 168.3

Larger Diameter (A2) mm 154.1

Smaller Diameter (B1) mm 141.3

Smaller Diameter (B2) mm 128.1

End To End (C) 139.7

Type Eccentric Reducer
Pipe Fitting Connection Buttweld
