Description

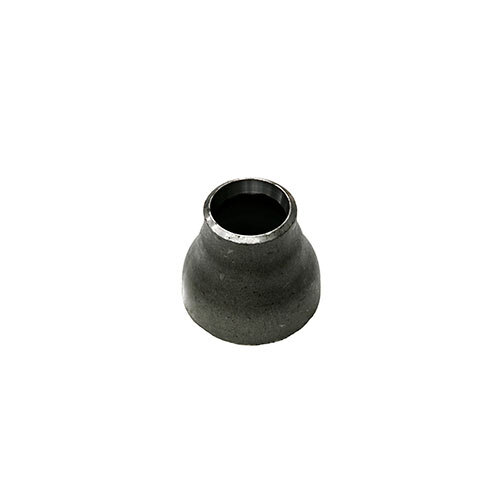

AAP Concentric Reducer Buttweld Sgp

Specification

  • AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
  • The advantages of Buttweld include:
    • Welding a Fitting to the pipe means it is permanently leak
    • The continuous metal structure formed between pipe and Fitting adds strength to the
    • Smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
    • A welded system utilizes a minimum of space.

Specifications

  • AIMS SKU A0078354
  • Brand AAP
  • Model Number WZCR9694
  • Pipe Size (inch) 6 x 4
  • Wall Thickness 5
  • Approx. Weight kg/pc 2.6

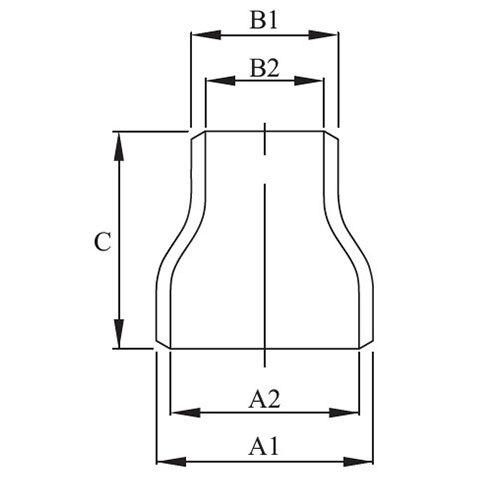

  • Larger Diameter (A1) mm 165.2
  • Larger Diameter (A2) mm 160.2
  • Smaller Diameter (B1) mm 114.3
  • Smaller Diameter (B2) mm 109.3
  • End To End (C) 139.7
  • Type Concentric Reducer
  • Pipe Fitting Connection Buttweld
SKU: A0078354

AAP 6" x 4" Concentric Reducer Buttweld SGP JIS 2311 WZCR9694

AAP - Reducer - Buttweld

$28.94
RRP $62.34
SAVE $33.40 (54%)
