Description

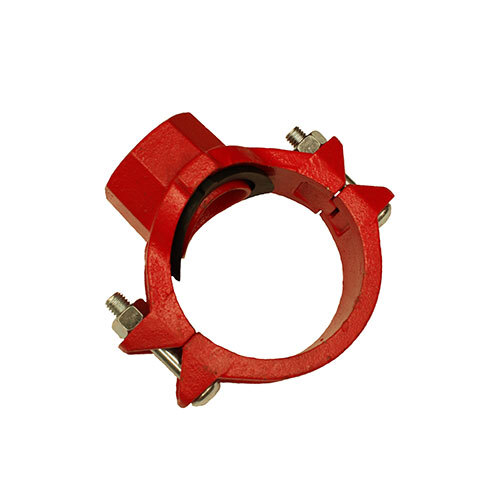

AAP Roll Groove Mechanical Tee - BSP

Material Specifications

  • Ductile Iron conforming to ASTM A-536 Grade 65-45-12
  • Provides additional screwed/outlet in the existing pipeline
  • Bolt & nut: Carbon steel
  • Gasket: EPDM

About Groove Piping:

  • Grooved piping system is reliable and faster to install than welding, threading, or Flanging.

  • This results in the lowest possible installed cost.

  • It can be adapted to suit standard pipe with cut grooves or standard and light wall pipe with rolled grooves.

Specifications

  • AIMS SKU A0080118
  • Brand AAP
  • Model Number GTM9680B

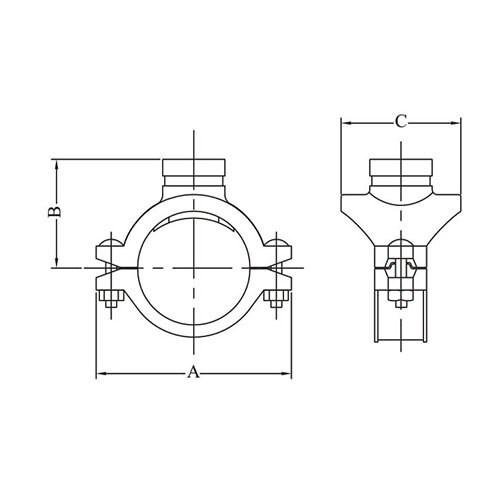

  • B 105.5
  • Length (A) 233
  • Pipe Size (inch) 6 x 3
  • Pipe Size (mm) 150 x 80
  • Approx. Kg/pc 4.7
  • Bolt Size 2 x M14 x 75
  • Hole Cutting Dimension (C ) mm 129
  • Type Mechanical Tee
  • Pipe Fitting Connection Roll Groove
SKU: A0080118

AAP 6 x 3" (150 x 80mm) Roll Groove Mechanical Tee BSP GTM9680B

AAP Roll Groove Mechanical Tee

$51.25
RRP $102.49
SAVE $51.24 (50%)
