AAP 6" Long Radius 90° Elbow Buttweld SGP JIS 2311 WZE96

Description

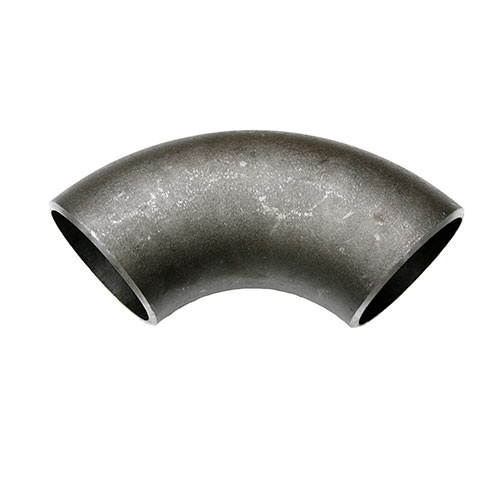

AAP 90° Long Radius Elbow Buttweld Sgp

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
The advantages of Buttweld include:
- Welding a Fitting to the pipe means it is permanently leak
- The continuous metal structure formed between pipe and Fitting adds strength to the
- The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
- A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078373

Brand AAP

Model Number WZE96

Pipe Size (inch) 6

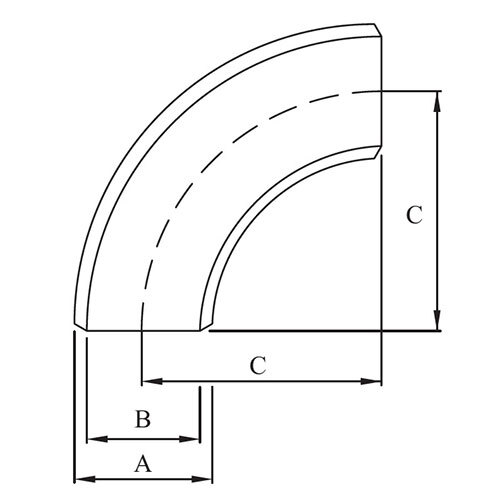

Outer Diameter (A) mm 165.2

Inner Diameter (B) mm 155.2

Center To End (C) mm 228.6

Wall Thickness 5

Approx. Weight kg/pc 6.6

Type Long Radius Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 90deg
