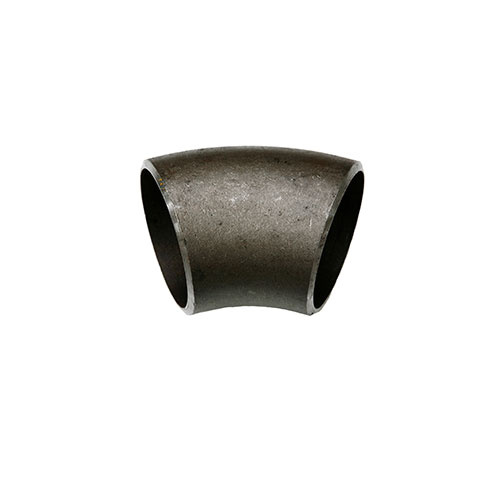

AAP 6" Long Radius 45° Elbow Buttweld X-Stg ASTM A234 WEF96X

Description

AAP 45° Long Radius Elbow Buttweld X-Stg

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
The advantages of Buttweld include:
- Welding a Fitting to the pipe means it is permanently leak
- The continuous metal structure formed between pipe and Fitting adds strength to the
- The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
- A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078491

Brand AAP

Model Number WEF96X

Pipe Size (inch) 6

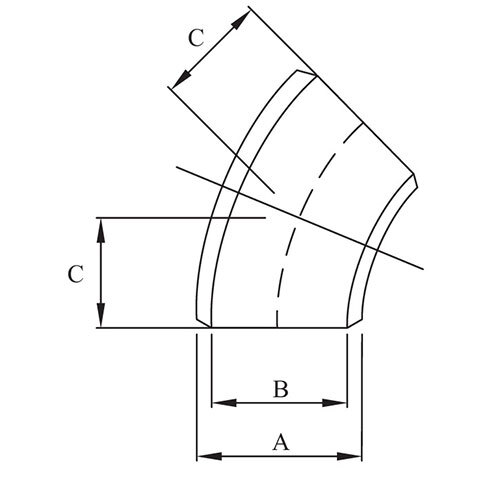

Outer Diameter (A) mm 168.3

Inner Diameter (B) mm 146.4

Center To End (C) mm 95.2

End To End (D) mm 304.8

Wall Thickness 10.97

Approx. Weight kg/pc 8.3

Type Long Radius Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 45deg
