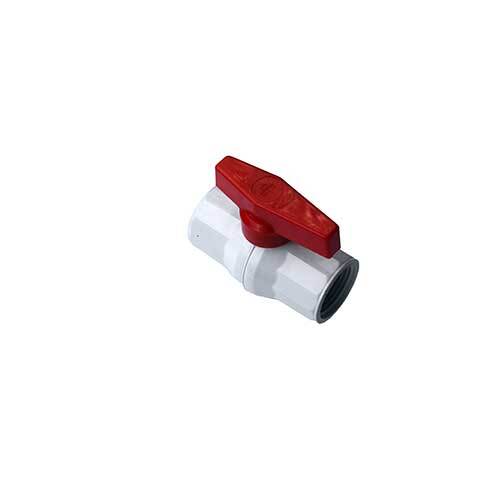

AAP 40mm, 1-1/2" PVC Ball Valve Screwed VPVC40

Description

AAP PVC Ball Valve Screwed

- Agriculture, turf and home watering systems

Specifications
Thread	AS1722.1
Max Working Temperature	120°C
Cold Working Pressure	800kPa

Material Lists
PART	MATERIAL
Body	ABS
Seal Seat	ABS
Ball Stem	NBR
Handle	EPDM
O' Ring	PVC, CPVP, ABS
Cap	PVC, CPVP, ABS

About Ball Valves:

A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
When the orifice is in line with both ends of the valve flow will occur.
When the valve is closed the orifice is perpendicular to the ends of the valve.
The lever/handle will be in line with the orificeposition, an indication of the valve position.

Specifications

AIMS SKU A0080327

Brand AAP

Model Number VPVC40

Pipe Size (inch) 1-1/2

Pipe Size (mm) 40

Approx. Kg/pc 0.37

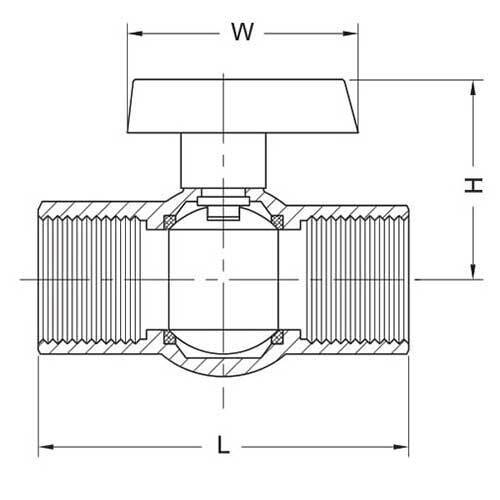

Valve Length (l) 131

Height of handle from Valve (H) 73.5

Valve Handle Length (W) 110

Type PVC Ball Valve
Fitting Material Finish PVC

Calculate Shipping

Resources

AAP S16 Ball Valves Catalogue
