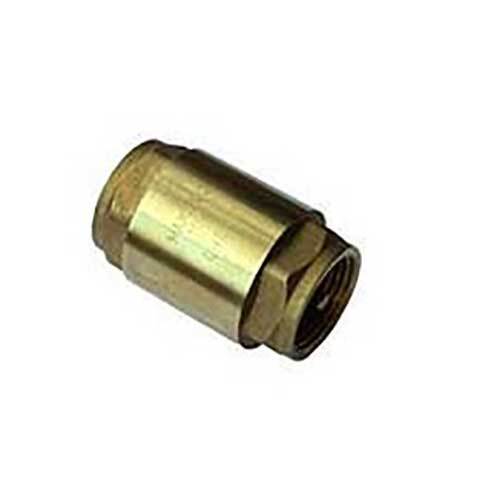

AAP Brass Check Valve T-Type

• Y-type strainers are designed for inline protection of control equipment, instruments, pumps, and regulators.
• There function is simplistic with ?uid passing through the perforated stainless steel sheet or wire mesh basket which is housed in a Y shaped body made of various materials, brass, steel, cast iron, stainless steel, etc.
• The basket traps the ?nes and the solids which fall into the leg of the housing.
• They can be flushed out while the plant is in operation with a ball valve ?tted to the leg of the housing, or the basket can be removed completely for cleaning whilst the plant is not operational.

Application:

• It can be ?tted in a horizontal, vertical, or oblique position. Suitable for Hot/Coldwater, Compressed Air, Oils

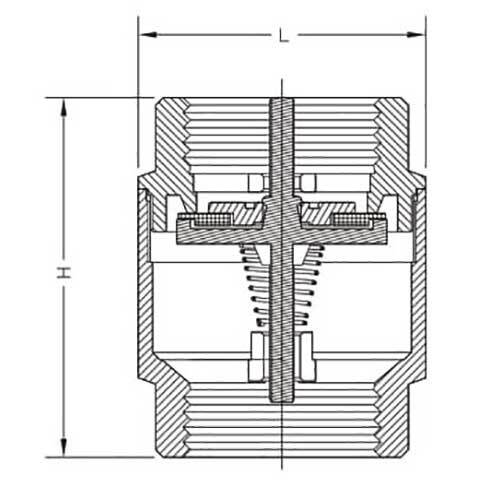

Material List:

• Body - Brass CW 617N
• Stem Seat - Nylon 6Seat - NBR 60 SH/A
• Spring - Stainless Steel AISI 302

Working Temperature:

• Air: -20°C to 110°C
• Water: 0°C to 90°C
• Gas: -20°C to 60°C
