Description

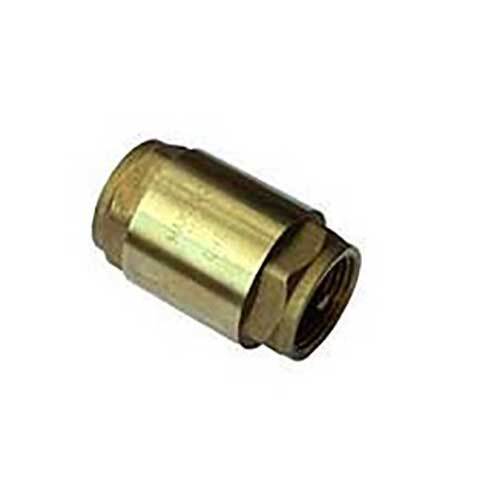

AAP Brass Check Valve E-Type

Application:

  • Can be ?tted in a horizontal, vertical, or oblique position. Suitable for Hot/Coldwater, Compressed Air, Oils

 Material List:

  • Body - Brass CW 617N
  • Internal Seat - Stainless Steel plate AISI 304 ?tted with   NBR 60 SH/A, Cover plate and rod in brass CW 614N
  • Spring - Stainless Steel AISI 302

Working Temperature:

  •  Air: -20°C to 110°C
  • Water: 0°C to 90°C
  • Gas: -20°C to 60°C

Specifications

  • AIMS SKU A0080471
  • Brand AAP
  • Model Number VBCE40
  • Pipe Size (inch) 1-1/2
  • Pipe Size (mm) 40

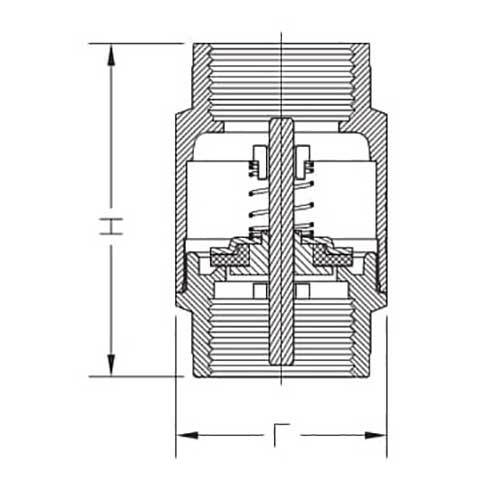

  • Valve Length (l) 71
  • Height of handle from Valve (H) 93
  • Approx Kg/pc 0.87
  • kPa 1793
  • Type E-Type Check Valve
  • Fitting Material Finish Brass
SKU: A0080471 On Sale

AAP 40mm, 1-1/2" Brass Check Valve E-Type VBCE40

AAP Check Valve

$49.74
$62.18
