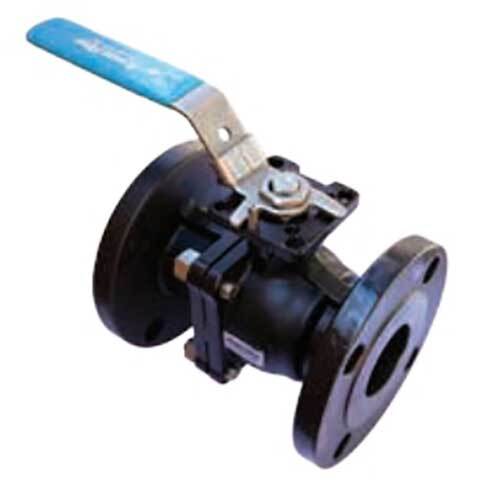

AAP 40mm, 1-1/2" Ball Valve Flanged Carbon Steel ANSI 150 VBS150FS40

Description

AAP Flanged Ball Valve

Applications: - Refinery, Chemical, Petrochemical, Pharmaceutical Power

Specifications

Flange Dimensions	ASME B16.5
Face to Face Dimensions	ASME B16.10
Max Working Temperature	200°C
Cold Working Pressure	1960KPa

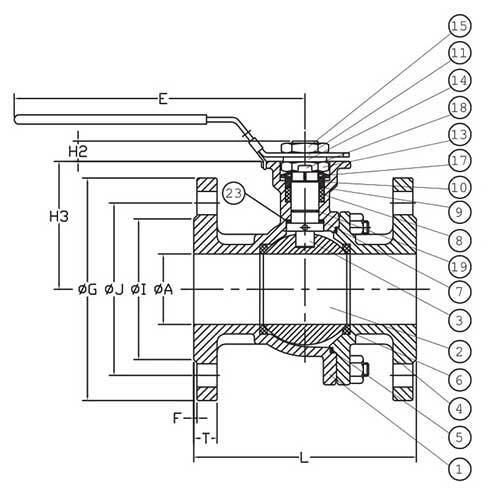

Material List

NO.	PART	MATERIAL
1	Body	ASTM A216 WCB
2	Ball	ASTM A351 CF8M(316)
3	Stem	SS316
4	End Cap	ASTM A216 WCB
5	Body Seal	Graphite
6	Seat	RTFE
7	Thrust Washer	PTFE
8	Stem Packing	Graphite
9	Thrust Washer	RTFE
10	Gland	SS304
11	Handle	SS304
12	Handle Cover	Plastic
13	Stem Nut	SS304
14	Handle Washer	SS304
15*	Handle Nut	SS304
16*	Locking Pad	SS304
17	Belleville Washer	SS304
18	Stop Washer	SS304
19	Stem O-Ring	VITON
20	Stop	SS304
21	Stud	ASTM A193 Gr. B8
22	Nut	ASTM A194 Gr. 8
23	Thrust Washer	Graphite
24**	Triangle Stopper	SS304
25**	Bolt	SS304
26**	Handle Adapter	SS304

*Up to 65mm valves **From 80mm valves

About Ball Valves:

A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
When the orifice is in line with both ends of the valve flow will occur.
When the valve is closed the orifice is perpendicular to the ends of the valve.
The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

AIMS SKU A0078664

Brand AAP

Model Number VBS150FS40

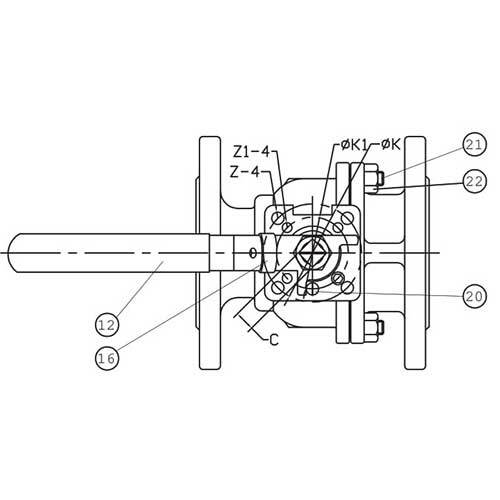

Handle washer to adapter (H1) -

Hole Diameter 16

Number of holes 4

Z1-4 7

Z-4 9

K1 50

K 70

T 17.5

I 73.2

J 98.6

Handle washer to adapter (H2) 14

Pipe Size (inch) 1-1/2

Ball Diameter 38

G 127

Valve Handle Length (E) 198

Height of handle from Valve (H3) 76

Valve Length (l) 165

C 14

F 1.6

Approx. Kg/pc 6.3

Pipe Size (mm) 40

Type Flanged Ball Valve
Fitting Material Finish Carbon Steel
Fitting Schedule/class ANSI 150
