Description

Stainless Steel Butt Weld

  • AAP supplies Stainless Steel butt-weld ?ttings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.
  • Stainless Steel Butt Weld Fittings are made from the ?nest quality stainless steel designed to be dimensionally precise.
  • The advantages of these ?ttings are its high tensile strength, robust nature, and rust-free properties.
  • Stainless steel butt-weld ?ttings are most commonly used in re?nery complexes, chemical production, and petrochemical engineering.
  • MATERIAL SPECIFICATIONS - ASTM A182 F316L - ASTM A182 F316

Specifications

  • AIMS SKU A0080826
  • Brand AAP
  • Model Number SWCR403169480
  • Pipe Size (inch) 4 x 3
  • Pipe Size (mm) 100 x 80
  • Approx. Kg/pc 1.7

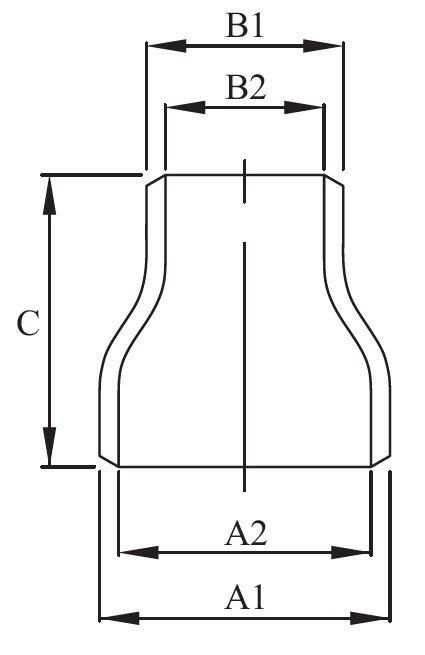

  • Outer Diameter (A1) mm 114.3
  • Outer Diameter (B1) mm 88.9
  • Inner Diameter (A2) mm 102.3
  • Inner Diameter (B2) mm 77.9
  • Length ( C ) 102
  • Type Concentric Reducer
  • Pipe Fitting Connection Buttweld
  • Fitting Schedule/class Schedule 40
  • Fitting Material 316 Stainless Steel
SKU: A0080826

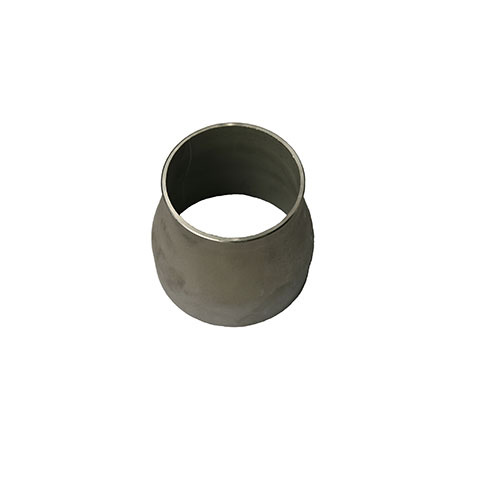

AAP 4" x 3" Concentric Reducer 316/316L SS Sch 40 SWCR403169480

AAP - Buttweld - Concentric Reducer

$74.73
RRP $83.70
SAVE $8.97 (11%)
