AAP 4" Long Radius 90° Elbow Buttweld SGP JIS 2311 WZE94

Description

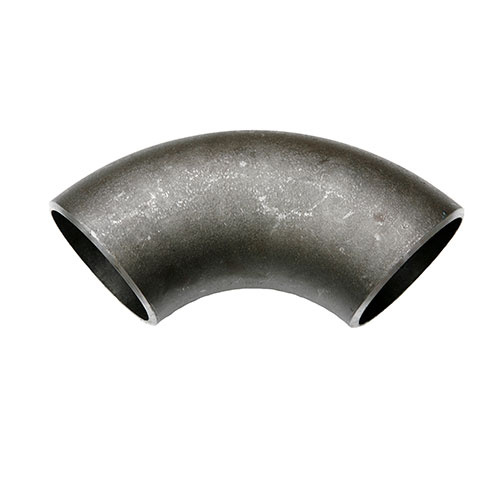

AAP 90° Long Radius Elbow Buttweld Sgp

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
The advantages of Buttweld include:
- Welding a Fitting to the pipe means it is permanently leak
- The continuous metal structure formed between pipe and Fitting adds strength to the
- The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
- A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078371

Brand AAP

Model Number WZE94

Pipe Size (inch) 4

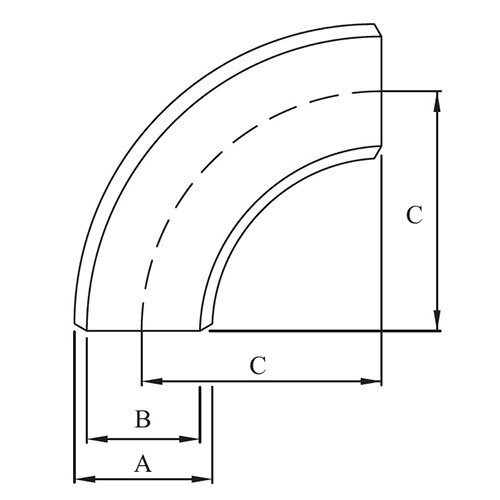

Outer Diameter (A) mm 114.3

Inner Diameter (B) mm 105.3

Center To End (C) mm 152.4

Wall Thickness 4.5

Approx. Weight kg/pc 2.9

Type Long Radius Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 90deg
