Description

Stainless Steel Butt Weld

  • AAP supplies Stainless Steel butt-weld ?ttings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.
  • Stainless Steel Butt Weld Fittings are made from the ?nest quality stainless steel designed to be dimensionally precise.
  • The advantages of these ?ttings are its high tensile strength, robust nature, and rust-free properties.
  • Stainless steel butt-weld ?ttings are most commonly used in re?nery complexes, chemical production, and petrochemical engineering.
  • MATERIAL SPECIFICATIONS - ASTM A182 F316L - ASTM A182 F316

Specifications

  • AIMS SKU A0080769
  • Brand AAP
  • Model Number SWT4031694
  • Pipe Size (inch) 4

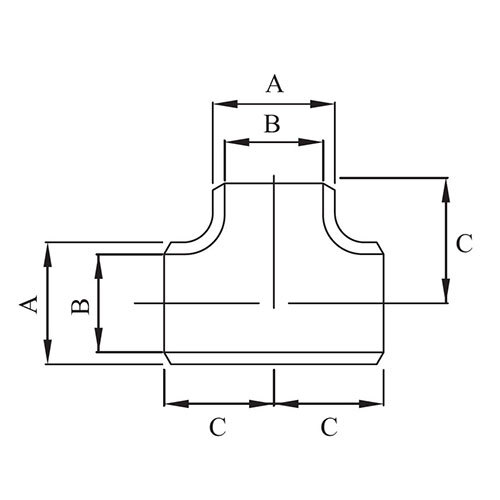

  • Outer Diameter (A) mm 114.3
  • Inner Diameter (B) mm 102.3
  • Pipe Size (mm) 100
  • Approx. Kg/pc 5.3
  • Thickness 6
  • Center To End ( C ) 152
  • Type Equal Tee
  • Pipe Fitting Connection Buttweld
  • Fitting Schedule/class Schedule 40
  • Fitting Material 316 Stainless Steel
SKU: A0080769

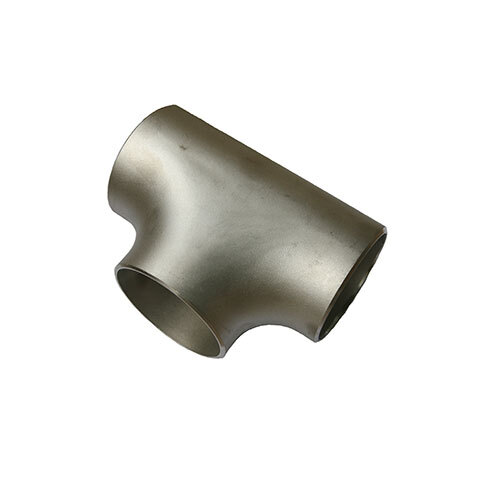

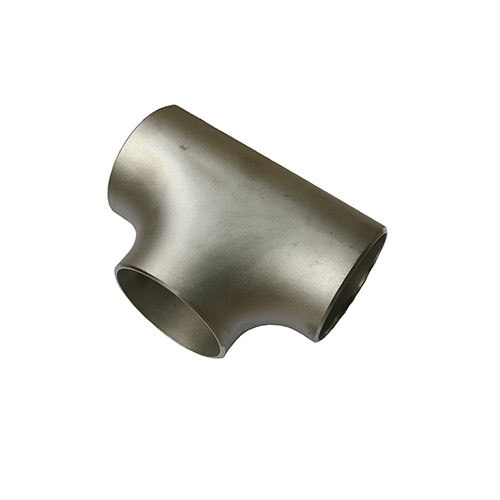

AAP 4", 100mm Equal Tee Buttweld 316/316L SS Sch 40 SWT4031694

AAP - Buttweld - Equal Tee

$252.18
