Description

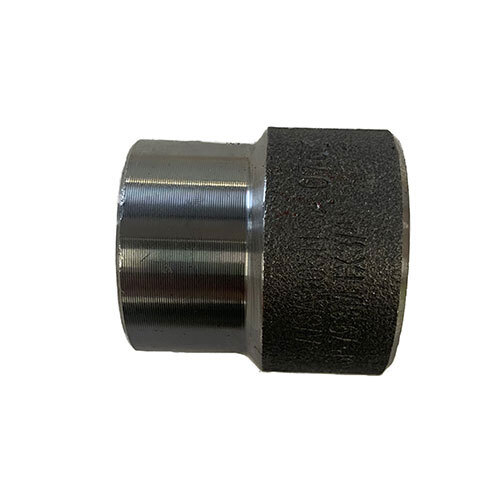

AAP Reducing Insert

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: MSS SP-97-2012 - Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends
  • Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size



Specifications

  • AIMS SKU A0079595
  • Brand AAP
  • Model Number PI3220S

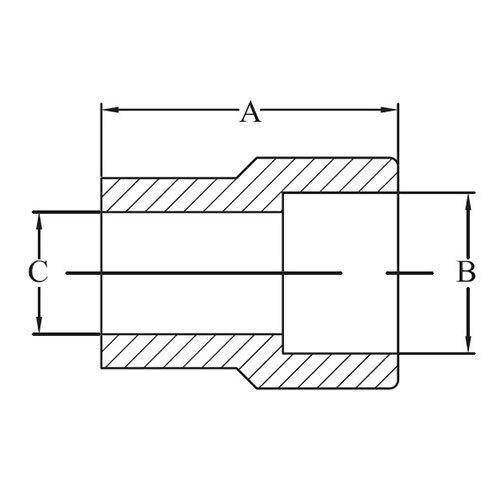

  • Length (A) 31
  • Pipe Size (inch) 1-1/4 x 3/4
  • Pipe Size (mm) 32 x 20
  • Approx. Kg/pc 0.17
  • Socket Bore Diameter (B) 27
  • Bore Diameter Of Fittings ( C ) 21
  • Type Reducing Insert
SKU: A0079595

AAP 32 x 20mm High Pressure Reducing Insert SP79-2011 PI3220S

AAP - Reducing Insert

$15.50
RRP $25.83
SAVE $10.33 (40%)
