Description

Stainless Steel Butt Weld

  • AAP supplies Stainless Steel butt-weld ?ttings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.
  • Stainless Steel Butt Weld Fittings are made from the ?nest quality stainless steel designed to be dimensionally precise.
  • The advantages of these ?ttings are its high tensile strength, robust nature, and rust-free properties.
  • Stainless steel butt-weld ?ttings are most commonly used in re?nery complexes, chemical production, and petrochemical engineering.
  • MATERIAL SPECIFICATIONS - ASTM A182 F316L - ASTM A182 F316

Specifications

  • AIMS SKU A0080784
  • Brand AAP
  • Model Number SWCR103168050
  • Pipe Size (inch) 3 x 2
  • Pipe Size (mm) 80 x 50
  • Approx. Kg/pc 0.6

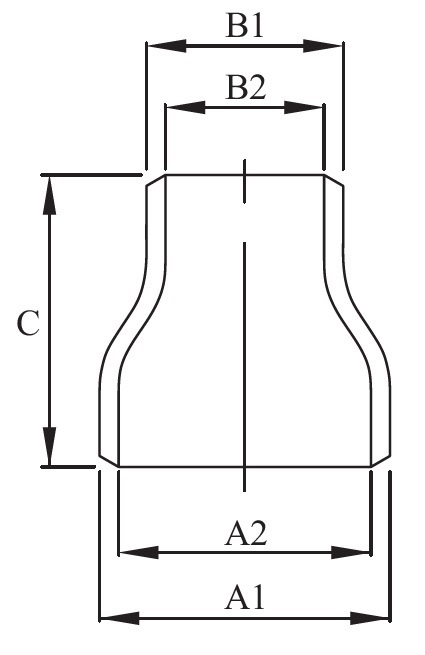

  • Outer Diameter (A1) mm 88.9
  • Outer Diameter (B1) mm 60.3
  • Inner Diameter (A2) mm 82.8
  • Inner Diameter (B2) mm 54.8
  • Length ( C ) 89
  • Type Concentric Reducer
  • Pipe Fitting Connection Buttweld
  • Fitting Schedule/class Schedule 10
  • Fitting Material 316 Stainless Steel
SKU: A0080784

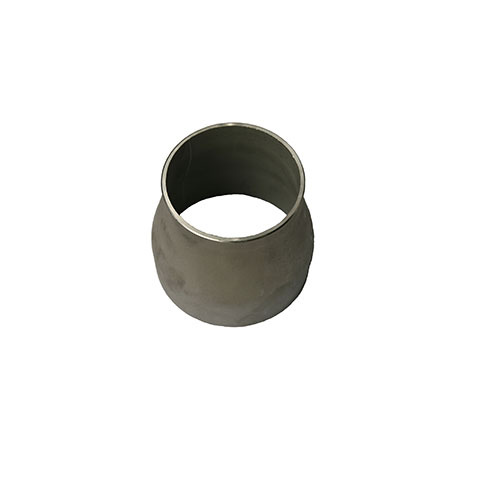

AAP 3" x 2" Concentric Reducer 316/316L SS Sch 10 SWCR103168050

AAP - Buttweld - Concentric Reducer

$31.50
RRP $35.29
SAVE $3.79 (11%)
