Description

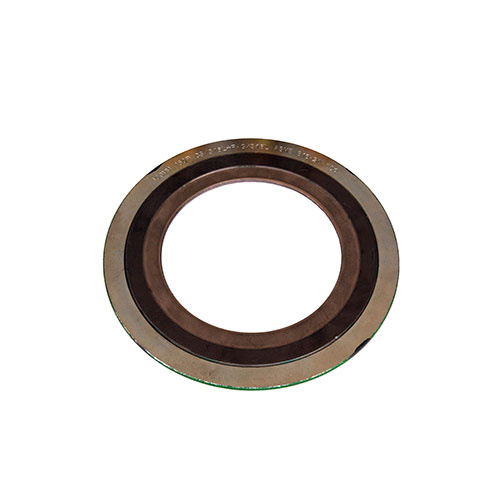

Spiral Wound Gaskets

  • Spiral Wound Gaskets are made of a preformed metallic strip and a softer ?ller material, wound together under pressure, and optionally with an outer guide ring.
  • The metal strip holds the ?ller, resulting in excellent mechanical resistance, resilience, and recovery.
  • The maximum working temperature is 450°C due to Graphite being used as the ?ller material.

Specifications

  • AIMS SKU A0081591
  • Brand AAP
  • Model Number LGSW15080

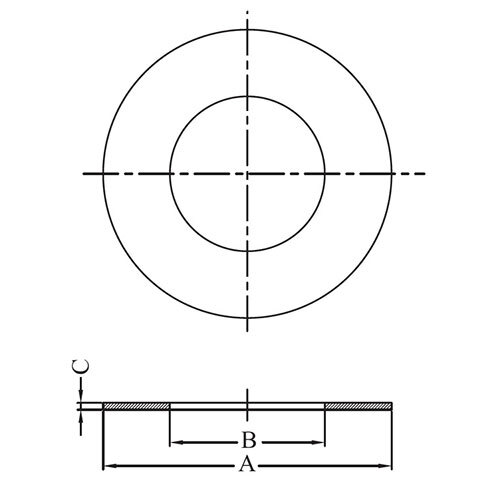

  • Thickness (C) 3
  • Pipe Size (inch) 3
  • Outer Diameter (A) mm 136
  • Inner Diameter (B) mm 101
  • Pipe Size (mm) 80
  • Type Spiral Wound Gasket
SKU: A0081591 On Sale

AAP 3" x 136mm Spiral Wound Gasket Class 150 LGSW15080

AAP - Gasket - Spiral Wound

$16.70
$20.88
