Description

Stainless Steel Butt Weld

  • AAP supplies Stainless Steel butt-weld ?ttings made from welded stainless steel pipe which is manufactured from 2B or HRAP stainless steel strip, which is formed to shape and longitudinally welded to complete the pipe.
  • Stainless Steel Butt Weld Fittings are made from the ?nest quality stainless steel designed to be dimensionally precise.
  • The advantages of these ?ttings are its high tensile strength, robust nature, and rust-free properties.
  • Stainless steel butt-weld ?ttings are most commonly used in re?nery complexes, chemical production, and petrochemical engineering.
  • MATERIAL SPECIFICATIONS - ASTM A182 F316L - ASTM A182 F316

Specifications

  • AIMS SKU A0080662
  • Brand AAP
  • Model Number SWC1031680
  • Pipe Size (inch) 3
  • Pipe Size (mm) 80
  • Approx. Kg/pc 0.3

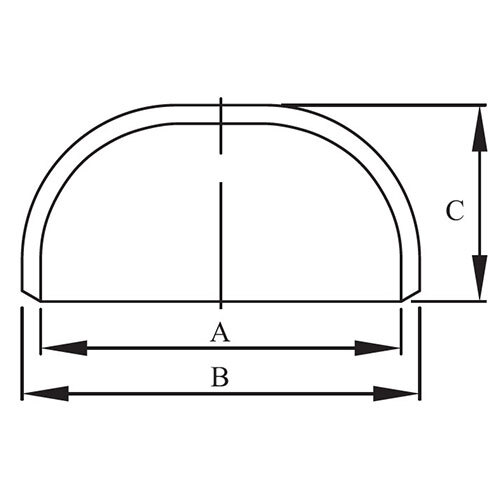

  • Outer Diameter (B) mm 88.9
  • Inner Diameter (A) mm 82.8
  • Thickness 3.05
  • Length ( C ) 51
  • Type Cap
  • Pipe Fitting Connection Buttweld
  • Fitting Schedule/class Schedule 10
  • Fitting Material 316 Stainless Steel
SKU: A0080662

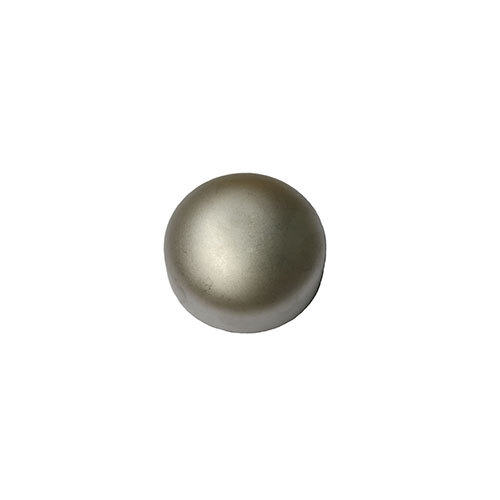

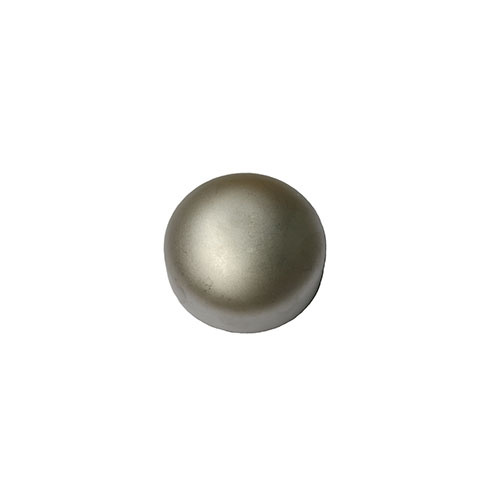

AAP 3", 80mm Cap Buttweld 316/316L SS Sch 10 SWC1031680

AAP - Buttweld - Cap

$37.99
