AAP 3/8" x 1/4" High Pressure Reducing Hexagon Nipple NPT Black PN1008

Description

AAP Reducing Hexagon Nipple NPT Available in Black

(High-Pressure Fittings)

Rating: Threaded End – 3000lbs

Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded

Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)

Marking:
- Carbon and Alloy Steel – Market by Stamping
- 3/8" and under: Brand only
- 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

finishing: Available in Black, Hot-Dipped, Stainless Steel

Specifications

AIMS SKU A0079513

Brand AAP

Model Number PN1008

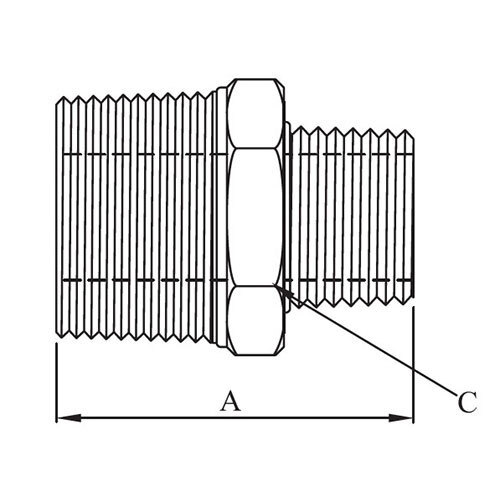

Length (A) 39

Pipe Size (inch) 3/8 x 1/4

Pipe Size (mm) 10 x 8

Approx. Kg/pc 0.05

C 18

Type Reducing Hex Nipple
Fitting Thread Form NPT
Pipe Fitting Material Finish Black

Calculate Shipping

Resources

AAP S6 High Pressure Fittings Catalogue
