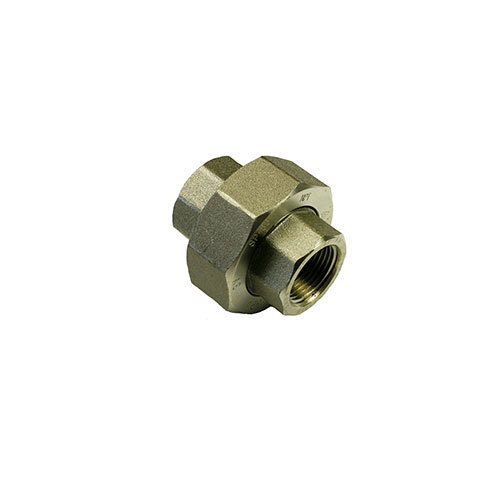

AAP 3/8", 10mm High Pressure Threaded Union NPT Black PU10

Description

AAP Union - Threaded NPT Available in Black

(High-Pressure Fittings)

Rating: Threaded End – 3000lbs

Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded

Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)

Marking:
- Carbon and Alloy Steel – Market by Stamping
- 3/8" and under: Brand only
- 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

finishing: Available in Black, Hot-Dipped, Stainless Steel

Specifications

AIMS SKU A0079740

Brand AAP

Model Number PU10

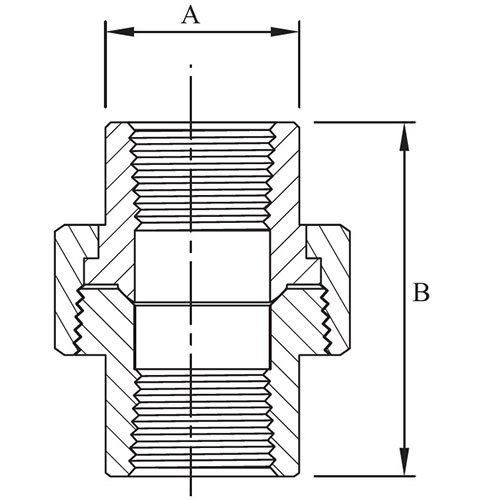

B 41

Pipe Size (inch) 3/8

Pipe Size (mm) 10

Approx. Kg/pc 0.24

Outside Diameter (A) 23

Type Threaded Union
Fitting Thread Form NPT
Pipe Fitting Material Finish Black
