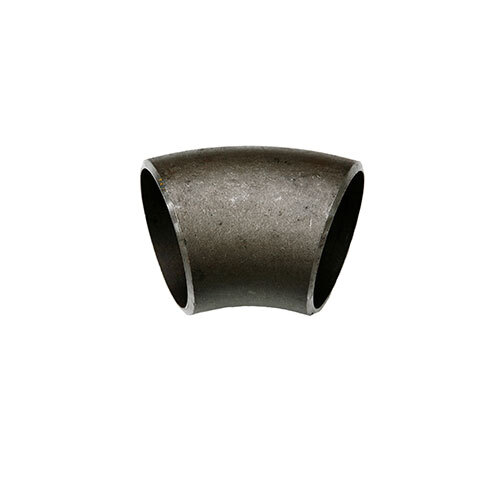

AAP 3/4" Long Radius 45° Elbow Buttweld STD ASTM A234 WEF20

Description

AAP 45° Short Radius Elbow Buttweld Std

Specification

AAP stocks Buttweld made from high-quality carbon alloy steel to ASTM A234 which can be used in various piping systems.
The advantages of Buttweld include:
- Welding a Fitting to the pipe means it is permanently leak
- The continuous metal structure formed between pipe and Fitting adds strength to the
- The smoother inner surface and gradual direction changes reduce the pressure losses and turbulence and minimises the action of corrosion and abrasion
- A welded system utilizes a minimum of space.

Specifications

AIMS SKU A0078276

Brand AAP

Model Number WEF20

Pipe Size (inch) 3/4

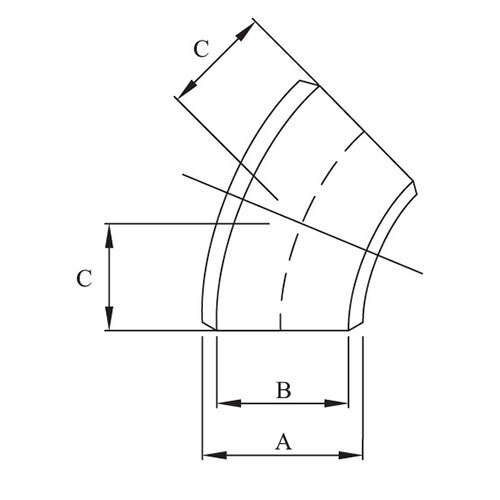

Outer Diameter (A) mm 26.7

Inner Diameter (B) mm 20.9

Center To End (C) mm 19

Wall Thickness 2.9

Approx. Weight kg/pc 0.04

Type Long Radius Elbow
Pipe Fitting Connection Buttweld
Specific Fitting Shape 45deg
