Description

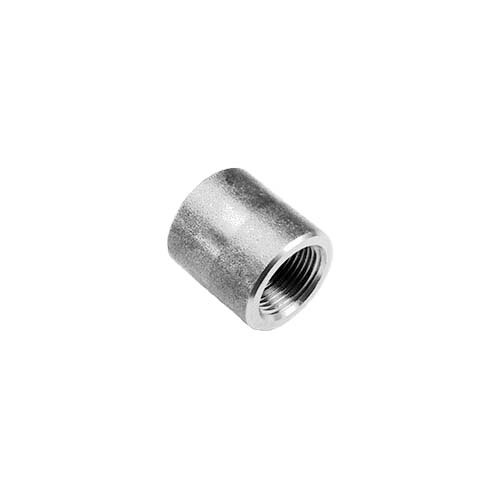

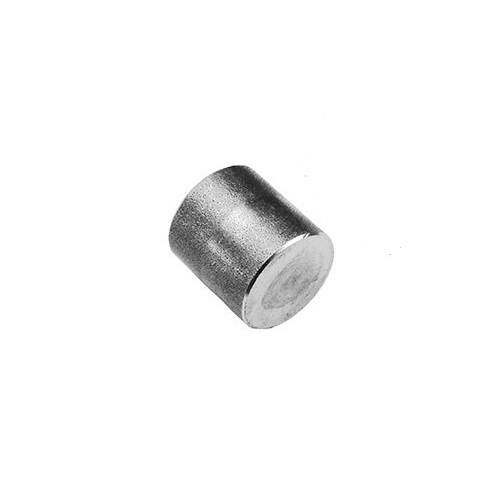

AAP Cap - Threaded NPT Galvanised

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size
  • finishing: Available in Black, Hot-Dipped, Stainless Steel

Specifications

  • AIMS SKU A0079224
  • Brand AAP
  • Model Number PC20G

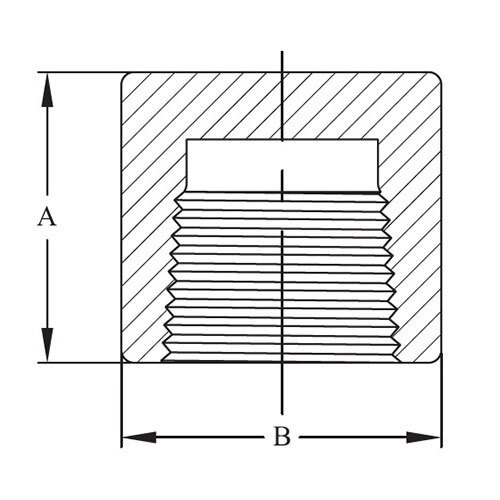

  • B 35
  • Length (A) 37
  • Pipe Size (inch) 3/4
  • Pipe Size (mm) 20
  • Approx. Kg/pc 0.18
  • Type Threaded Cap
  • Fitting Thread Form NPT
  • Pipe Fitting Material Finish Galvanised
SKU: A0079224

AAP 3/4", 20mm High Pressure Threaded Cap NPT Gal PC20G

AAP - Cap - Threaded

$7.69
RRP $14.34
SAVE $6.65 (46%)
