Description

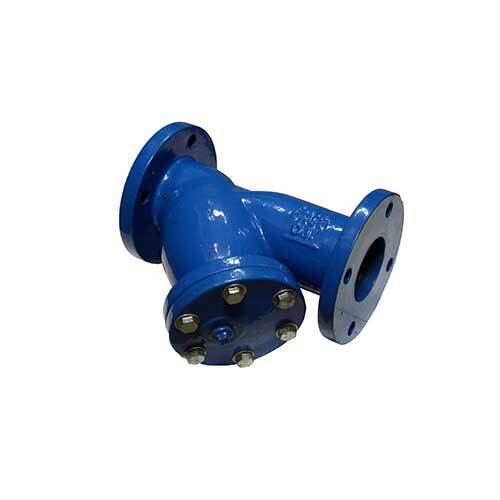

AAP Cast Iron Y Strainer Flanged Table-E

Applications:

  • Water, Oil, Air

Specifications:

  • Flange - AS2129 T/E
  • Max Working Temperature - 120°C
  •  Cold Working Pressure - 1600kPa

Material List:

    • Body - Cast Iron (epoxy coated)
    • Screen - 304 Stainless Steel
    • Gasket - Graphite
    • Cover - Cast Iron
    • Plug - Malleable Iron

Effective Open Area

  • Size: 50mm - 150mm
  • Screen Openings: 1.5mm diam @ 4.5mm spacing
  • % of Inlet Pipe: 33%
  • Size: 200mm - 300mm
  • Screen Openings: 3mm diam @ 7.5mm spacing
  • % of Inlet Pipe:  44%"

Specifications

  • AIMS SKU A0081462
  • Brand AAP
  • Model Number VDIYX25
  • Pipe Size (inch) 10
  • Pipe Size (mm) 250

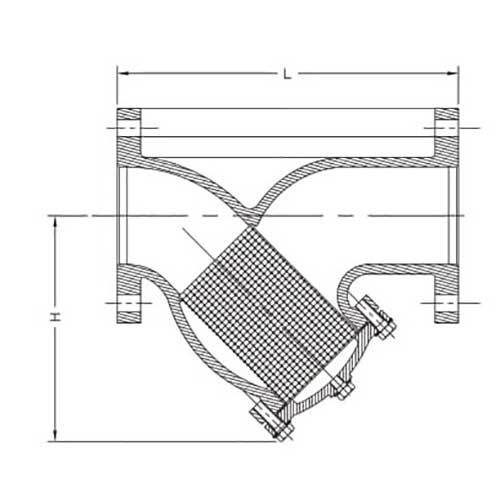

  • Valve Length (l) 660.4
  • Height of handle from Valve (H) 483
  • Number of holes 12
  • Hole Diameter 22
  • Approx Kg/pc 169
  • Type Y Strainer
  • Fitting Material Finish Cast Iron
SKU: A0081462

AAP 250mm, 10" Cast Iron Y Strainer Flanged Table-E VDIYX25

AAP Cast Iron Y Strainer

$1,789.07
RRP $3,339.60
SAVE $1,550.53 (46%)
