Description

AAP Branch Outlet w/ Socket Weld End

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards: MSS SP-97-2012 - Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079575
  • Brand AAP
  • Model Number POS2580

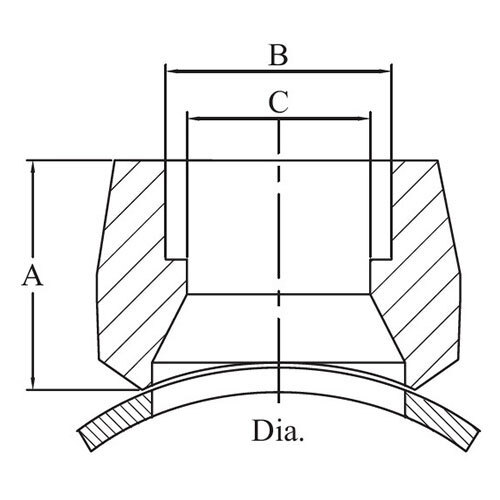

  • Length (A) 33
  • Pipe Size (inch) 1 x 3
  • Pipe Size (mm) 25 x 80
  • Approx. Kg/pc 0.34
  • Socket Bore Diameter (B) 45.5
  • Bore Diameter Of Fittings ( C ) 27
  • Type Branch Outlet
  • Pipe Fitting Connection Socket Weld
SKU: A0079575

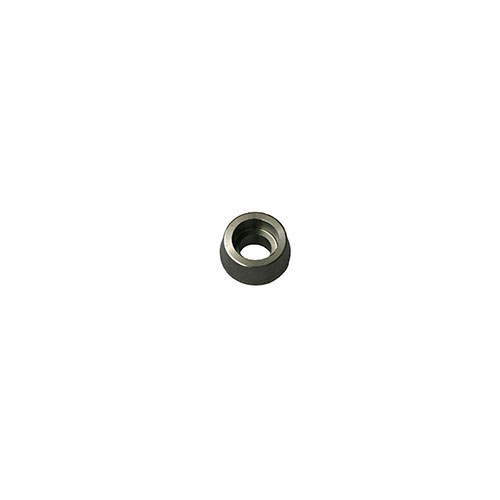

AAP 25 x 80mm High Pressure Branch Outlet w/ Socket Weld End POS2580

AAP - Socket Weld End - Branch Outlet

$19.83
RRP $37.02
SAVE $17.19 (46%)
