Description

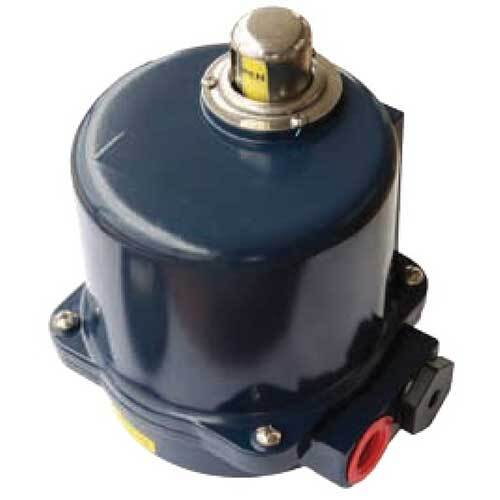

OM-2 Electric Actuator

  • A combination of motor that can create a movement of the load, or an action requiring a force such as clamping, using an electric motor to create the necessary force.
  • When the electric motor is operating, the hand-wheel won’t rotate for personal safety purposes.
  • Torque Range: 35 Nm - 150Nm

Specifications

  • AIMS SKU A0081031
  • Brand AAP
  • Model Number VOM224VAC
  • Torque (Nm) 90

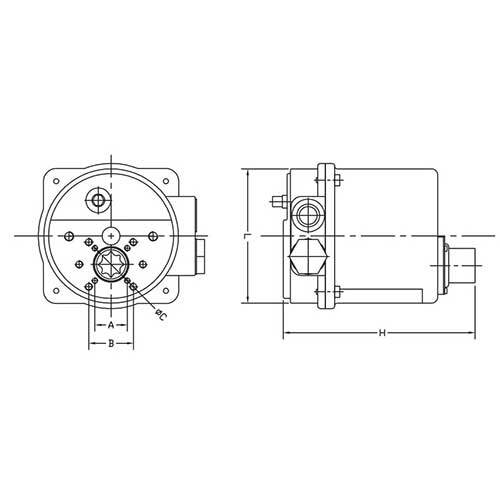

  • B 50
  • Approx. Kg/pc 9
  • C 14
  • A -
  • H 290
  • Volts 24
  • AC/DC AC
  • L 250
  • Power (watts) 40
  • Speed (Sec/90 deg) 15
SKU: A0081031

AAP 24V AC OM-2 Electric Actuator VOM224VAC

AAP Electric Actuator

$1,772.98
RRP $3,309.56
SAVE $1,536.58 (46%)
