Description

Stainless Steel Ball Valve 2- PCE Full Bore

  • For air, water, Hot/Cold corrosive fluid in harsh environments

Specifications

Thread AS1722.1
Max Working Temperature 180°C
Cold Working Pressure 6895kPa



Material Lists

Part Material
Body CF8M
Ball 316 Stainless Steel
Seat Teflon (PTFE)
Stem 316 Stainless Steel
Lever 316 Stainless Steel with Locking Device



About Ball Valves

  • A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
  • When the orifice is in line with both ends of the valve flow will occur.
  • When the valve is closed the orifice is perpendicular to the ends of the valve.
  • The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

  • AIMS SKU A0080532
  • Brand AAP
  • Model Number SS2BV20
  • Pipe Size (inch) 3/4
  • Pipe Size (mm) 20
  • Approx. Kg/pc 0.4

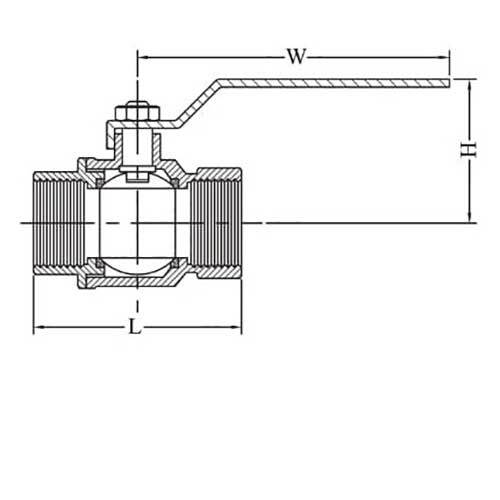

  • Valve Length (l) 65.7
  • Height of handle from Valve (H) 61
  • Valve Handle Length (W) 127
  • Torque inch/lbs 65
  • Type Ball Valve
  • Fitting Material Finish Stainless Steel
SKU: A0080532

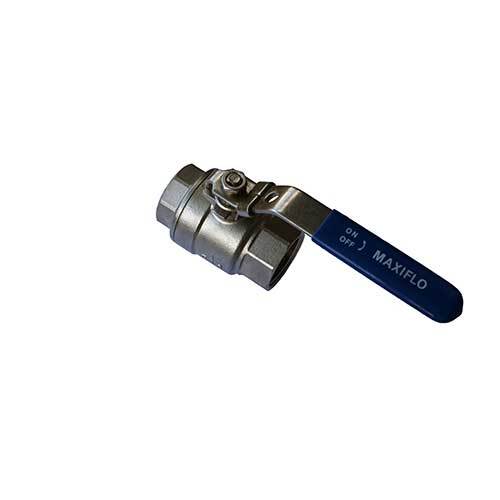

AAP 20mm, 3/4" Stainless Steel Ball Valve 2-PCE Full Bore SS2BV20

AAP Stainless Steel Ball Valve

$30.47
RRP $37.92
SAVE $7.45 (20%)
