Description

AAP Brass Check Valve E-Type

Application:

  • Can be ?tted in a horizontal, vertical, or oblique position. Suitable for Hot/Coldwater, Compressed Air, Oils

 Material List:

  • Body - Brass CW 617N
  • Internal Seat - Stainless Steel plate AISI 304 ?tted with   NBR 60 SH/A, Cover plate and rod in brass CW 614N
  • Spring - Stainless Steel AISI 302

Working Temperature:

  •  Air: -20°C to 110°C
  • Water: 0°C to 90°C
  • Gas: -20°C to 60°C

Specifications

  • AIMS SKU A0080468
  • Brand AAP
  • Model Number VBCE20
  • Pipe Size (inch) 3/4
  • Pipe Size (mm) 20

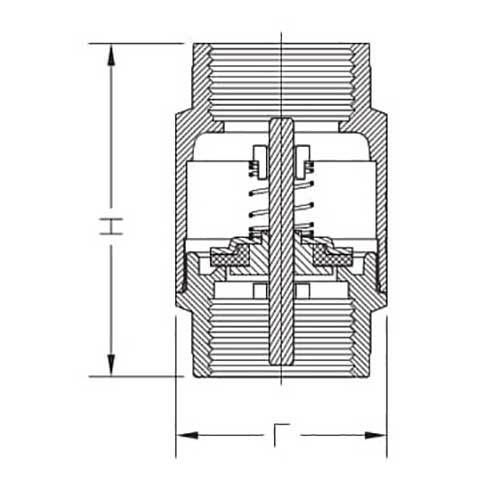

  • Valve Length (l) 42
  • Height of handle from Valve (H) 63
  • Approx Kg/pc 0.27
  • kPa 2482
  • Type E-Type Check Valve
  • Fitting Material Finish Brass
SKU: A0080468

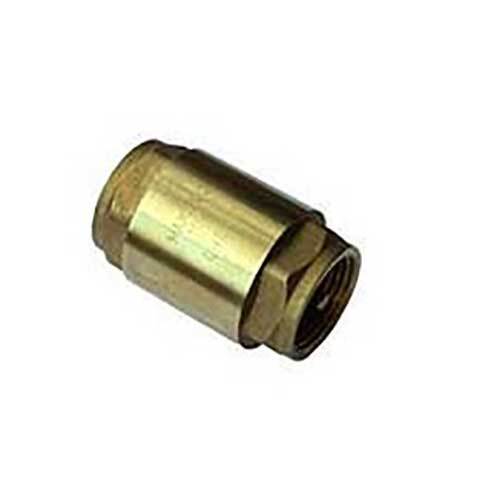

AAP 20mm, 3/4" Brass Check Valve E-Type VBCE20

AAP Check Valve

$21.34
RRP $35.57
SAVE $14.23 (40%)
