Description

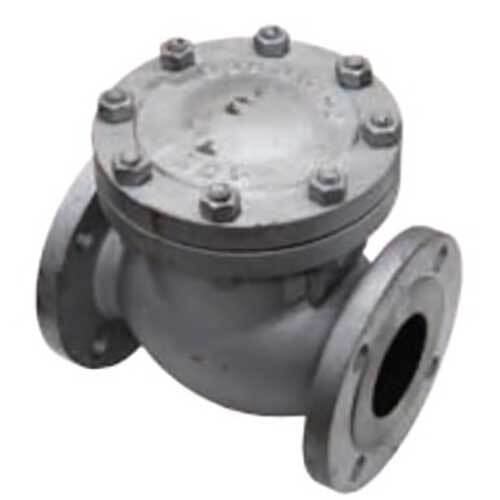

AAP Cast Steel Flanged Check Valve ANSI-150

Application:

  • Steam Oil and Petro Chemical Industry

Specifications:

  • Design - ANSI B16.34
  • Flange - ANSI B16.5
  • Cold Working Pressure - 1960kPa
  • Max Working Temperature - 300°C

Material List:

  • Body - WCB (ASTM A216)
  • Bonnet - WCB (ASTM A216)
  • Disc - 410 (2Cr13)
  • Seat - H/F Stellite
  • Gasket - Graphite

Specifications

  • AIMS SKU A0081100
  • Brand AAP
  • Model Number VSC15098
  • Pipe Size (inch) 8
  • Pipe Size (mm) 200

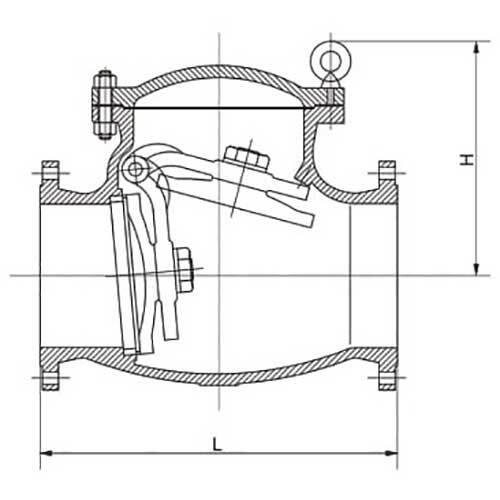

  • Valve Length (l) 495.6
  • Height of handle from Valve (H) 350
  • Number of holes 8
  • Hole Diameter 22
  • Approx Kg/pc 148
  • Type Flanged Check Valve
  • Fitting Material Finish Cast Steel
SKU: A0081100

AAP 200mm, 8" Cast Steel Flanged Check Valve ANSI-150 VSC15098

AAP Check Valve flanged

$2,150.70
RRP $3,584.50
SAVE $1,433.80 (40%)
