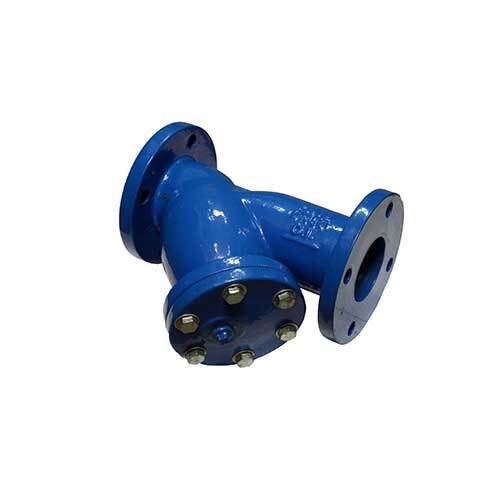

AAP 200mm, 8" Cast Iron Y Strainer Flanged Table-E VDIY98

Description

AAP Cast Iron Y Strainer Flanged Table-E

Applications:

Water, Oil, Air

Specifications:

Flange - AS2129 T/E
Max Working Temperature - 120°C
Cold Working Pressure - 1600kPa

Material List:

- Body - Cast Iron (epoxy coated)
- Screen - 304 Stainless Steel
- Gasket - Graphite
- Cover - Cast Iron
- Plug - Malleable Iron

Effective Open Area

Size: 50mm - 150mm
Screen Openings: 1.5mm diam @ 4.5mm spacing
% of Inlet Pipe: 33%
Size: 200mm - 300mm
Screen Openings: 3mm diam @ 7.5mm spacing
% of Inlet Pipe: 44%"

Specifications

AIMS SKU A0081461

Brand AAP

Model Number VDIY98

Pipe Size (inch) 8

Pipe Size (mm) 200

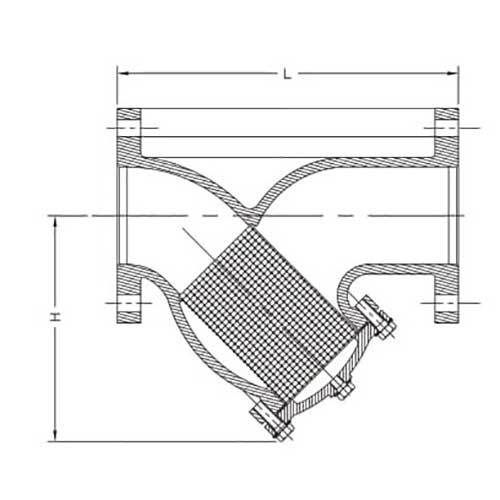

Valve Length (l) 543

Height of handle from Valve (H) 397

Number of holes 8

Hole Diameter 22

Approx Kg/pc 99

Type Y Strainer
Fitting Material Finish Cast Iron
