Description

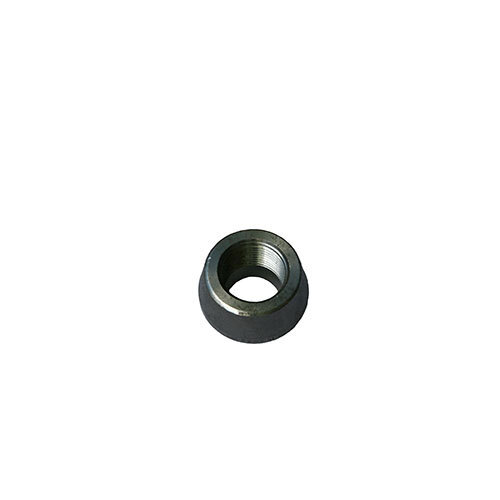

AAP Branch Outlet w/ Threaded End

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: MSS SP-97-2012 - Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends
  • Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079556
  • Brand AAP
  • Model Number POT2040
  • B 37.1
  • Pipe Size (inch) 3/4 X 1-1/2
  • Pipe Size (mm) 20 x 40
  • Approx. Kg/pc 0.18
  • Outer Diameter (mm) 27
  • Type Branch Outlet
  • Fitting Thread Form NPT
  • Pipe Fitting Material Finish Black
SKU: A0079556

AAP 20 x 40mm High Pressure Branch Outlet w/ Threaded End NPT Black POT2040

AAP - Threaded End - Branch Outlet

$16.96
RRP $28.27
SAVE $11.31 (40%)
